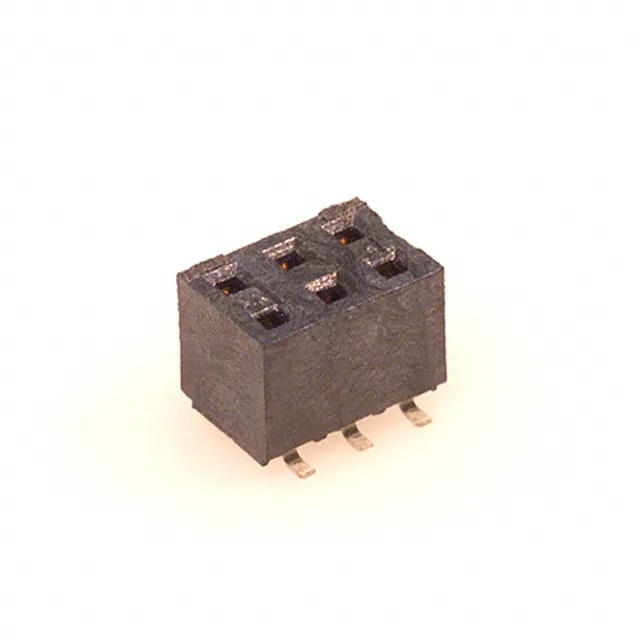

Molex Milli-Grid 79109 receptacle, order code 0791090002, 6 positions, dual row, 2.00 mm pitch, 1 A, 125 V, gold-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 79109 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0791090002 is the 6-circuit member of Molex's Milli-Grid 79109 board-to-board or cable receptacle line. It carries gold-plated mating contacts rated 1 A at 125 V and mounts surface-mount with solder termination.
The 0791090002 is listed as Obsolete by Molex.
The 0791090002 is an Obsolete part; a board spin may be required for any replacement.
The evidence lists UL94 V-0 flammability rating for the LCP housing material. No RoHS, REACH, or other compliance documentation is recorded.
