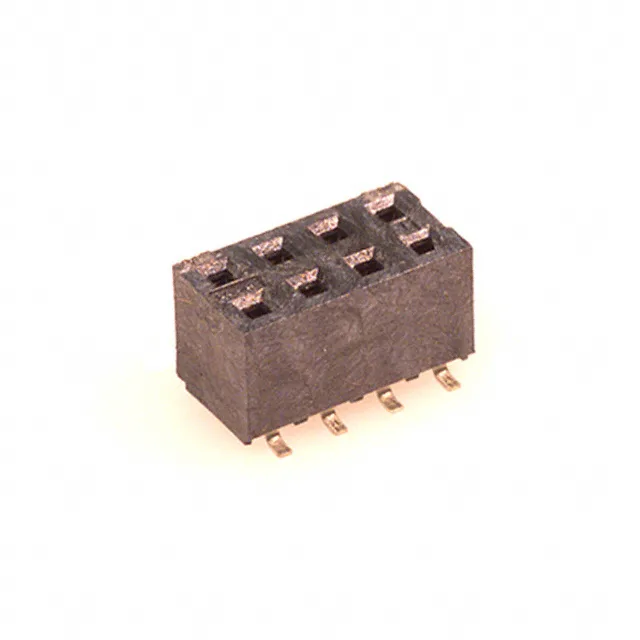

0791090003 — Molex product photo
Molex

Molex 0791090003 Milli-Grid 8-Position 2.00mm Receptacle

MPN0791090003
Obsolete

Molex Milli-Grid 79109 series, 0791090003, 8-position dual-row surface-mount receptacle, 2.00 mm pitch, gold-plated mating contacts, rated 1 A at 125 V, UL94 V-0 LCP housing, -55°C to 125°C operating range.

$2.2800Ref. price · indicative, final on quote
0791090003 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0791090003 Technical Specifications
ParameterValue
SeriesMilli-Grid 79109
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating125V
Current rating1A
Operating temperature-55°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.175\" (4.45mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions8
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

8-Position Milli-Grid Receptacle — Fit and Ratings

The 0791090003 is an 8-position, dual-row receptacle from the Molex Milli-Grid 79109 series. The tin-lead post finish (74.8 µinch) is compatible with standard solder reflow profiles. The push-pull fastening and surface-mount termination suit board-to-board or cable applications where the connector must be mated and unmated without tools.

Available through independent surplus and distribution channels.

The receptacle mates with Milli-Grid 79109 series pin headers of matching position count and pitch.

Frequently asked questions

What is the replacement for Molex 0791090003?

No official replacement or pin-compatible successor is recorded from Molex. The 0791090003 is a specific 8-position, 2.00 mm pitch Milli-Grid receptacle — any functional alternative would require verifying the footprint, mating header, and current rating against the original design.
