The 0791090005: It mounts surface-mount with solder termination, mates with a push-pull fastening, and carries gold-plated contacts rated 1 A at 125 V.
Available through surplus channels; quantities confirmed per RFQ.

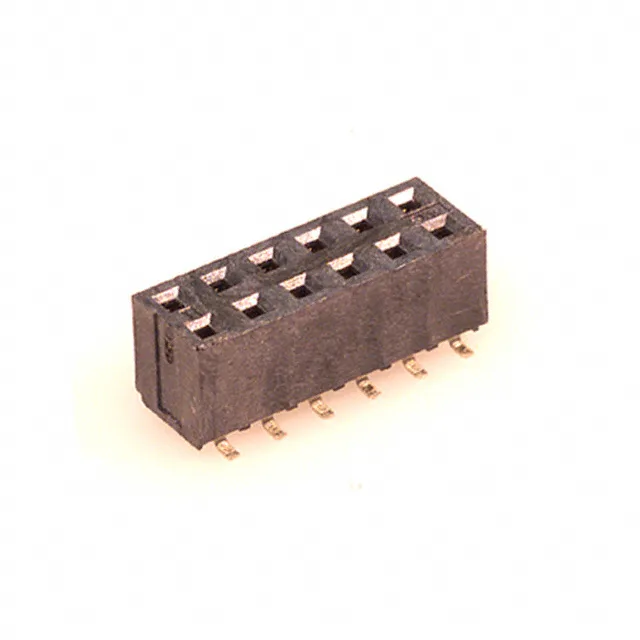

Molex 0791090005 Milli-Grid 79109 Receptacle, 12 Pos 2.00mm
MPN0791090005
Obsolete
Molex Milli-Grid 79109 receptacle, order code 0791090005, 12 positions, dual row, 2.00 mm pitch, 1 A, 125 V, gold-plated mating contacts, surface-mount, solder termination.
$2.5700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 79109 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 0791090005?
Submit an RFQ. The part is Obsolete and sourced through surplus; price and stock depend on lot availability at the time of inquiry.
What is the closest pin-compatible alternative to 0791090005 in the Milli-Grid 79109 family?
No pin-compatible successor is recorded from Molex. A board spin is required for any functional replacement.
What is the 0791090005's listed style and series?
Style is Board to Board or Cable. Series is Milli-Grid 79109.
