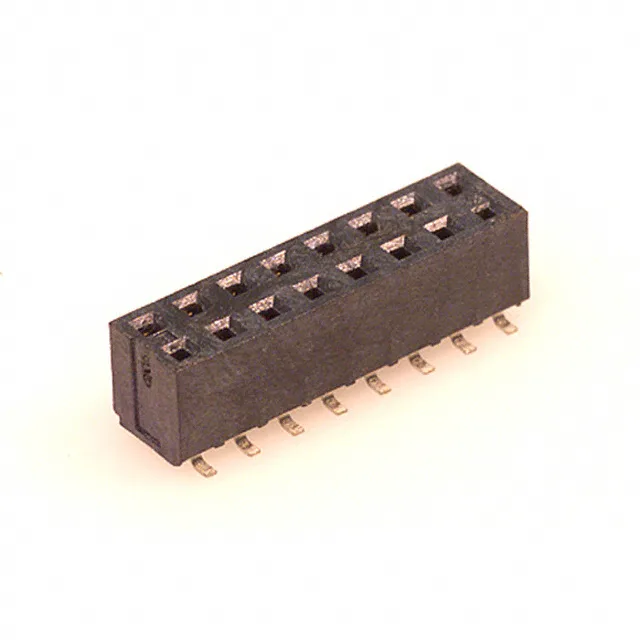

Molex Milli-Grid 79109 series, 16-position dual-row receptacle, 2.00mm pitch, surface-mount solder termination, gold-plated contacts, rated 1A at 125V, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 79109 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
No official pin-compatible replacement has been published by Molex. If a board-spin is an option, the Milli-Grid series includes active 2.00mm pitch receptacles with similar footprint — check the 079109 base number for current alternatives.
The contact post finish is tin-lead — verify RoHS exemption applicability for your assembly process.
This part is obsolete and not held in standard distributor stock. Submit a quote request for current pricing and lot status.
