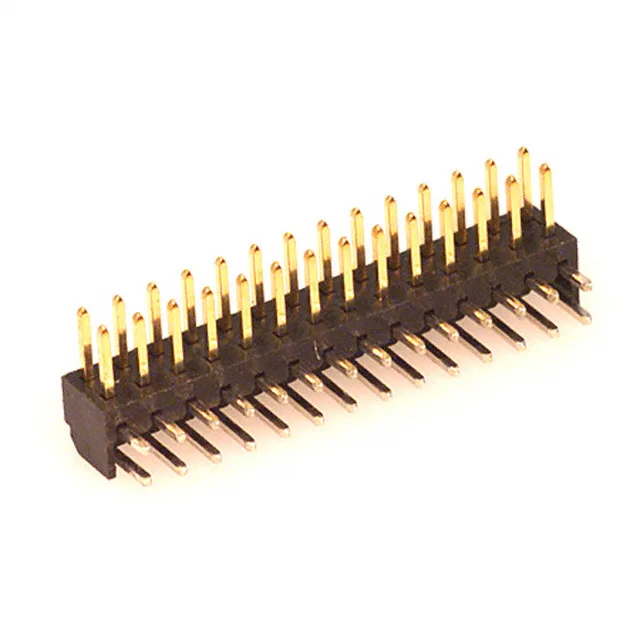

Molex 0870492816 Milli-Grid 2.00 mm Right-Angle Header

MPN0870492816
Obsolete

Molex Milli-Grid 87049 series, 0870492816, a 28-position, 2.00 mm pitch, right-angle, unshrouded board-to-board header with through-hole solder termination and gold-plated square pins.

$1.2989Ref. price · indicative, final on quote
0870492816 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0870492816 Technical Specifications
ParameterValue
SeriesMilli-Grid 87049
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.169\" (4.30mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions28
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board Layout Fit: 2.00 mm Pitch, 28 Positions, Right-Angle

The 0870492816: This is a 28-position, 2.00 mm pitch, dual-row header in a right-angle through-hole orientation — the pins sit parallel to the board surface, saving z-height in a mezzanine or board-edge stack. The unshrouded design leaves the mating pins exposed; board layout needs to account for the 0.169" (4.30 mm) insulation height above the board and the 0.102" (2.60 mm) post length for solder wetting.

Contact Interface: Gold Mating Finish for Repeated Mate Cycles

The solder tails carry a tin-lead finish (74.8 µinch / 1.90 µm) — confirm the board finish and reflow profile for mixed-plating compatibility.

This header mates with Milli-Grid 87049 series receptacle housings — same 2.00 mm pitch, dual-row, unshrouded interface. Confirm the mating half order code against the circuit count and keying before committing the BOM line.

Frequently asked questions

Is Molex 0870492816 obsolete, and what is the replacement?

Yes, 0870492816 is listed as Obsolete by Molex. No official pin-compatible replacement from Molex is documented. For a form-fit-function cross, compare the 2.00 mm pitch, 28-position, right-angle, unshrouded header requirement against active Milli-Grid 87049 series parts — but verify the footprint and mating interface; any substitution must match the same pitch, row spacing, and orientation.

Where can I buy 0870492816?

No stock-holding claim — availability and lot condition confirmed at quote time.

What is the pinout and mating connector for 0870492816?

All 28 positions are loaded in a dual-row, 2.00 mm pitch layout. Mates with Milli-Grid 87049 series receptacle housings — same series, same pitch. The right-angle orientation places pins parallel to the board; confirm the mating half part number for the exact circuit count.
