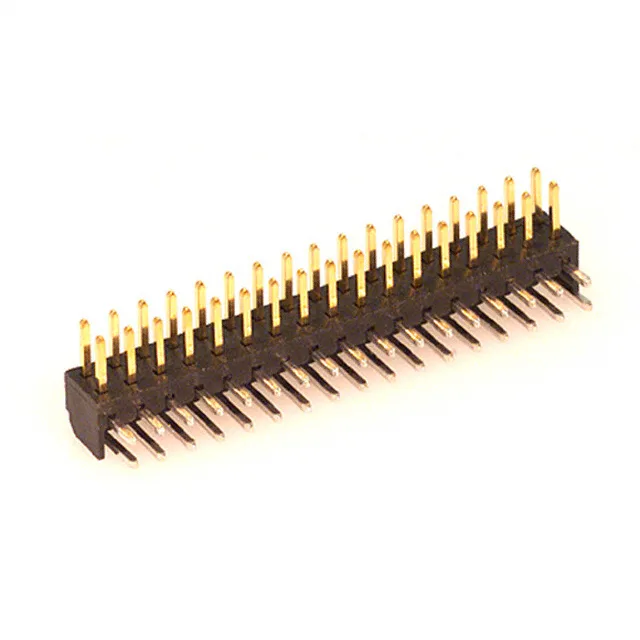

Molex Milli-Grid 87049 series, 0870493416 — 34-position, dual-row, unshrouded header, 0.079" (2.00 mm) pitch, right-angle through-hole, push-pull fastening, gold-plated mating contacts, tin-lead post plating, PCT insulator UL94 V-0, tube package.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87049 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.169\" (4.30mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 34 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0870493416 is a 34-position, dual-row, unshrouded header from the Molex Milli-Grid 87049 series.
The post tails are tin-lead plated at 74.8 µin (1.90 µm), a legacy finish that may affect RoHS compliance status.
Termination is solder — the post length is 0.102" (2.60 mm) for through-hole soldering. All 34 positions are loaded.
No official replacement is listed by Molex. We can source the original part per RFQ while inventory lasts.
The mating pitch is 0.079" (2.00 mm), and the row-to-row spacing is also 0.079" (2.00 mm).
It is a 34-position, dual-row header with all positions loaded. The rows are spaced 2.00 mm apart, and the pins are square male pins.
This part is Obsolete. We source against the BOM quantity per RFQ — availability and pricing confirmed at quote time.
