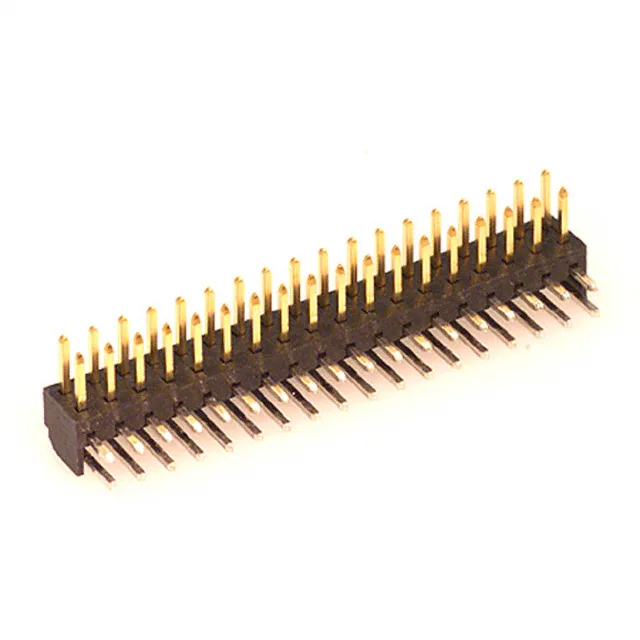

Molex 0870493616 Milli-Grid Header, 36 Pos, 2.00 mm

MPN0870493616
Obsolete

Molex Milli-Grid 87049 series unshrouded header, 36 circuits, 2.00 mm pitch, through-hole right-angle, gold-plated mating contacts, UL94 V-0 housing.

$1.4533Ref. price · indicative, final on quote
0870493616 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0870493616 Technical Specifications
ParameterValue
SeriesMilli-Grid 87049
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.169\" (4.30mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions36
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 0870493616: Available through independent distribution surplus channels.

Through-Hole Right-Angle Mounting Detail

The header terminates via solder through-hole. The post length is 0.102" (2.60 mm) — this is the depth the pin tail extends below the board surface after soldering.

Flammability and Contact Materials

The tin-lead post finish (74.8 µinch) is compatible with leaded solder processes; if your assembly line is RoHS-exempt for leaded solder, this is fine — otherwise confirm the post finish matches your soldering requirements.

Frequently asked questions

What is the pitch and pin count of 0870493616?

The pitch is 2.00 mm (0.079") on both the row-to-row and pin-to-pin spacing. It has 36 positions, all loaded, in a dual-row configuration.
