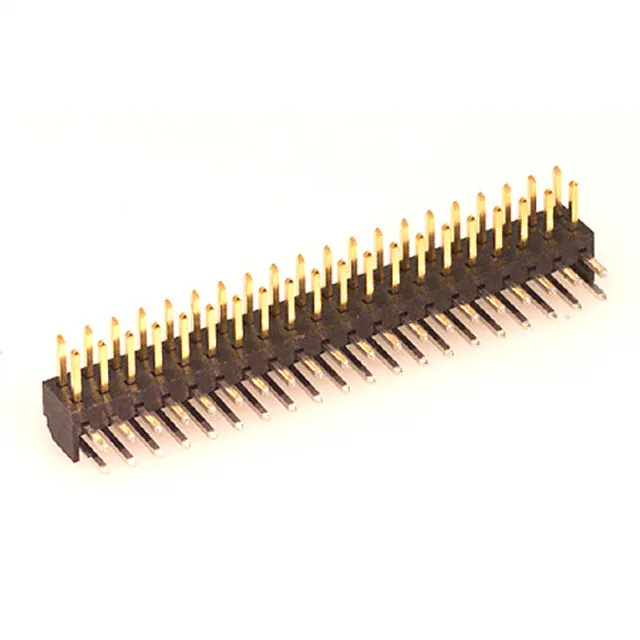

Molex Milli-Grid 87049 series, 0870494016, unshrouded board-to-board header, 40 positions, 2 rows, 2.00mm pitch, right-angle through-hole, gold-plated mating contacts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87049 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.169\" (4.30mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Molex has marked the 0870494016 as Obsolete. No stock-holding claim — sourced per request.
Unshrouded push-pull fastening — mates with Milli-Grid 87047 or 87369 series receptacles. The 0.169" insulation height leaves clearance for the mating housing latch.
Molex has not published a direct pin-compatible replacement for the 0870494016. The Milli-Grid 87049 series includes active headers with the same 2.00mm pitch and 40-position count, but the right-angle through-hole variant may require a different base product number. Confirm the mating half and board footprint before substituting.
