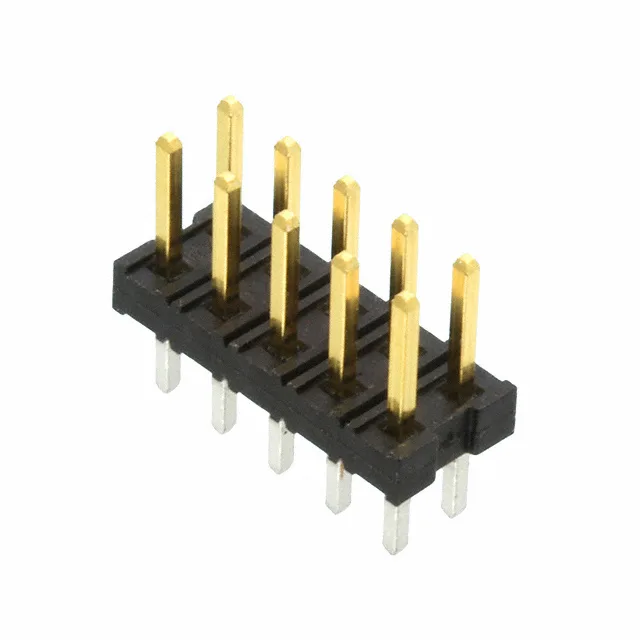

Molex Milli-Grid 87089 header, breakaway, order code 0870891016, 10 positions, dual row, 2.00 mm pitch, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87089 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0870891016 is the 10-position member of the Molex Milli-Grid 87089 breakaway header line, a board-to-cable/wire unshrouded header with dual rows at 2.00 mm pitch. Mating contacts are gold-plated (15.0 µin) on phosphor bronze pins; the post finish is tin-lead (74.8 µin).
Molex lists the 0870891016 as Obsolete.
The part is available through independent surplus channels. Request a quote for the quantity needed; availability and pricing are confirmed per RFQ.
