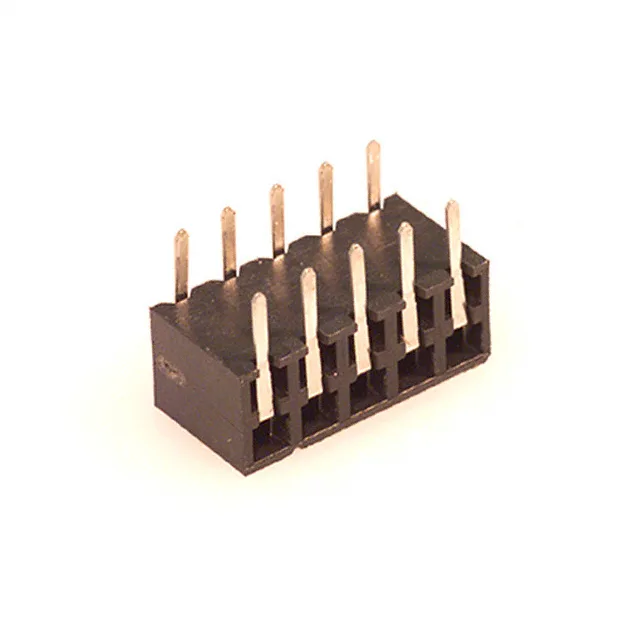

Molex Milli-Grid 87264 receptacle, order code 0872641050, 10 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87264 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Style | Board to Board or Cable |
| Package | Tube |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0872641050 is the 10-circuit member of the Milli-Grid 87264 receptacle line, a board-to-board or cable style connector with a 2.00 mm pitch. Rated 1 A per contact at 125 VAC, the receptacle carries gold-plated mating contacts with 15.0 µin thickness and mounts through-hole right-angle for board-edge or parallel-PCB routing.
Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ.
