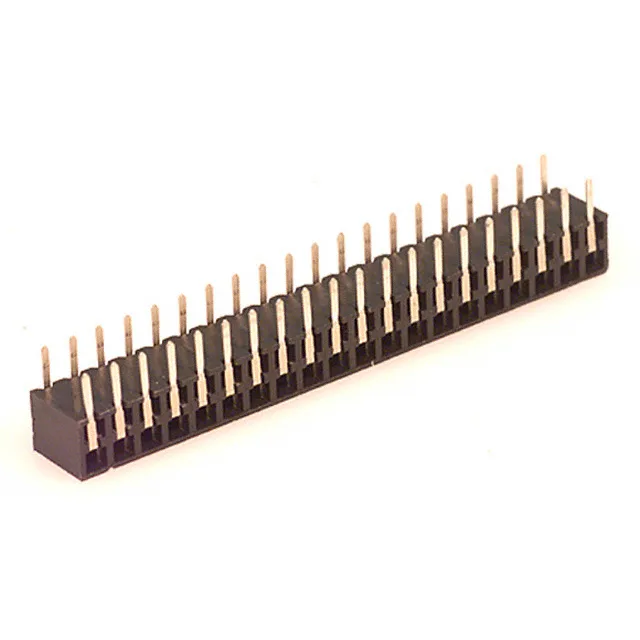

Molex Milli-Grid 87264 receptacle, order code 0872644050, 40 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87264 |
| Gender | Female Socket |
| Mounting type | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0872644050 is the 40-circuit member of Molex's Milli-Grid 87264 receptacle line, a dual-row board-to-board or cable receptacle on 2.00 mm pitch. Gold-plated mating contacts rated 1 A at 125 VAC, through-hole right-angle termination with tin-lead post plating.
Molex has marked the 0872644050 as Obsolete.
The 0872644050 is available through independent surplus channels. Quantities and pricing are confirmed at RFQ.
