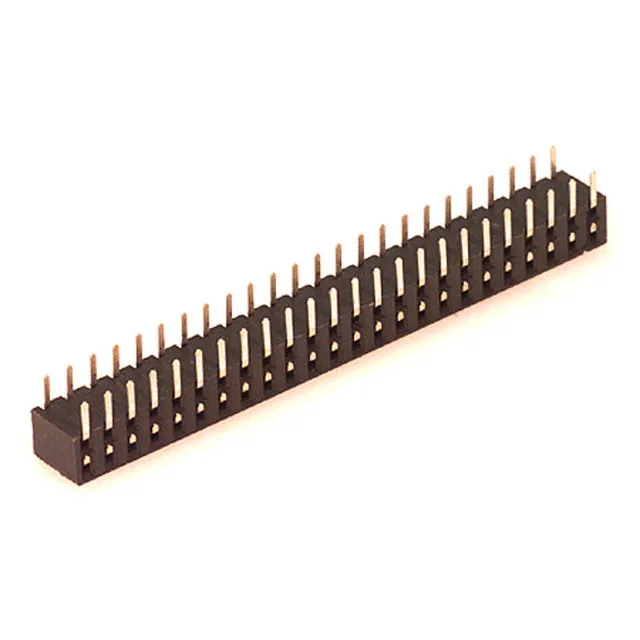

Molex Milli-Grid 87264 receptacle, order code 0872644850, 48 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
Molex 0872644850 Milli-Grid 87264 Receptacle, 48 Pos, 2.00mm
MPN0872644850
Obsolete
Molex Milli-Grid 87264 receptacle, order code 0872644850, 48 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
$3.5484Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87264 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Style | Board to Board or Cable |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 48 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy the 0872644850 and how do I get a price?
The 0872644850 is available through independent surplus channels. Submit an RFQ for current availability and pricing — quantities are lot-specific.
