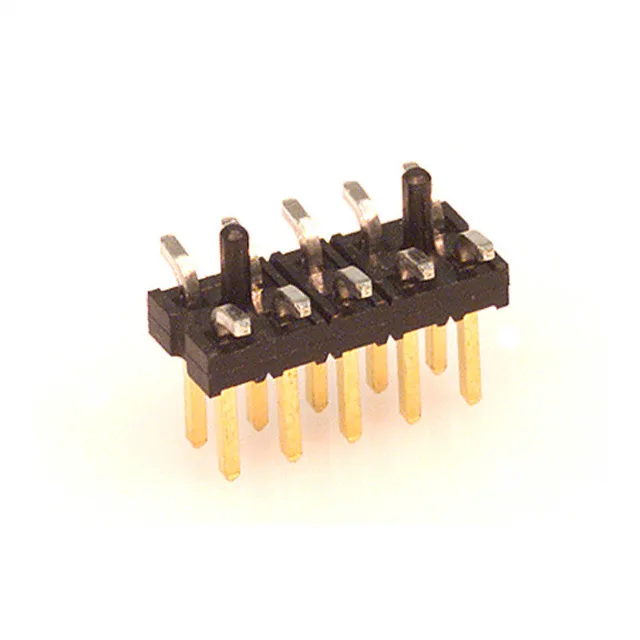

0872671050 — Molex product photo
Molex

Molex 0872671050 Milli-Grid Header, 10 Pos 2.00mm

MPN0872671050
Obsolete

Molex Milli-Grid 87267 header, order code 0872671050, 10 positions, dual row, 2.00 mm pitch, gold-plated mating contacts, surface-mount, solder termination.

$1.2600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0872671050 Technical Specifications
ParameterValue
SeriesMilli-Grid 87267
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Guide
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions10
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact length - mating0.150\" (3.81mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-wire header, 10 circuits, 2.00 mm pitch

The 0872671050: Gold mating contacts (15.0µin) suit the part for moderate-cycle applications; the UL94 V-0 polyamide housing carries a board guide for automated placement.

Molex lists the 0872671050 as Obsolete.
