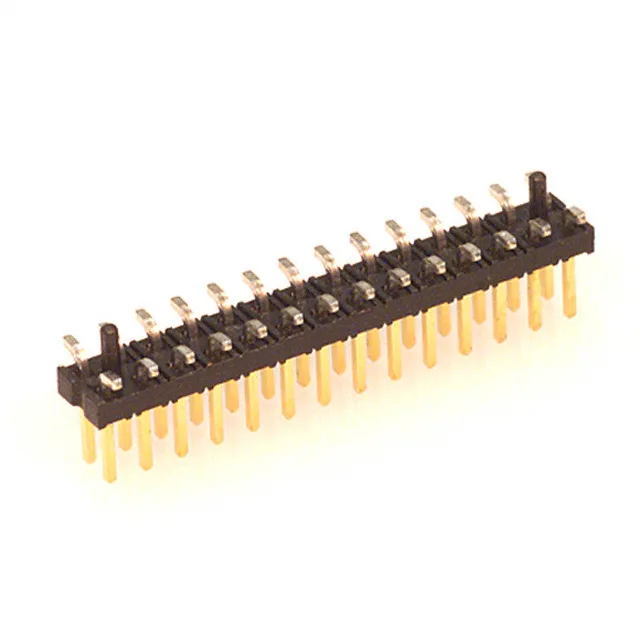

Molex Milli-Grid 87267 series, 0872672850, 28-position dual-row unshrouded header, 2.00mm pitch, surface-mount solder termination, gold-plated mating contacts, UL94 V-0 black nylon housing.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87267 |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact length - mating | 0.150\" (3.81mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0872672850 is a 28-position, dual-row header on 2.00mm pitch, with a row spacing of 2.00mm. The mating contact length is 0.150" (3.81mm), and the insulation height above the board is just 0.059" (1.50mm), keeping the profile low for tight enclosures.
Molex lists this part as Obsolete. No direct pin-compatible replacement is recorded from the original manufacturer.
The 0872672850 has a 2.00mm (0.079") mating pitch with a matching 2.00mm row spacing, making it a standard dual-row Milli-Grid footprint.
Yes, the header includes a board guide feature to assist alignment during mating, helping prevent pin damage.
