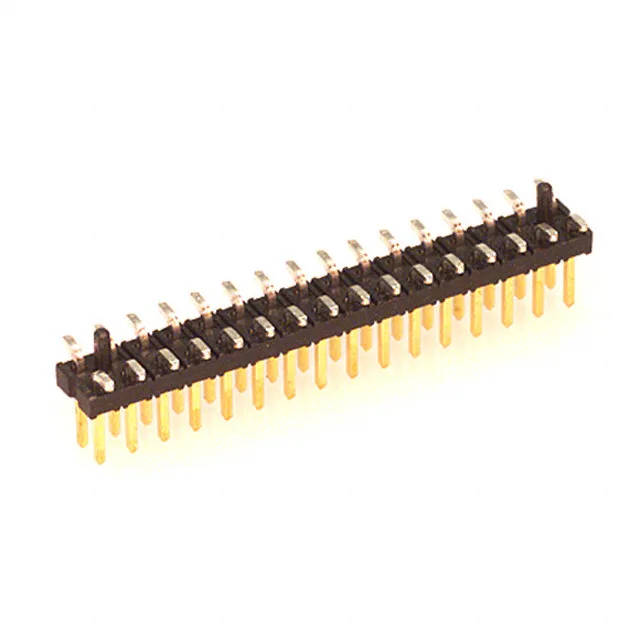

0872673250 — Molex product photo
Molex

Molex 0872673250 Milli-Grid 32-Pin Header, 2.00mm Pitch, SMT

MPN0872673250
Obsolete

Molex Milli-Grid 87267 series, 0872673250, board-to-cable/wire unshrouded male pin header, 32 circuits, dual-row, 2.00mm pitch, surface-mount, gold mating finish, UL94 V-0

$5.1500Ref. price · indicative, final on quote
0872673250 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0872673250 Technical Specifications
ParameterValue
SeriesMilli-Grid 87267
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Guide
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions32
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact length - mating0.150\" (3.81mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

32-Position Dual-Row Milli-Grid Header

The 0872673250: The 0.150" (3.81mm) mating pin length gives enough engagement depth for a positive contact wipe before the housing bottoms out. The contact finish is 15.0µin gold over phosphor bronze on the mating side, with a tin-lead post finish. Gold at that thickness supports repeated mating cycles — rated for hundreds of insertions in a field-service or test-fixture role — and resists corrosion in non-sealed environments.

Sourcing an Obsolete Part

Molex lists the 0872673250 as Obsolete. No stock-holding claim is made; sourced per your BOM quantity against a quote.

The 0.059" (1.50mm) insulation height keeps the component low-profile above the PCB — useful when the mating receptacle sits in a tight z-height budget.

Frequently asked questions

How can I order Molex 0872673250 or check availability?

This part is obsolete. Submit a BOM quantity request for a sourcing response.

What is the replacement for Molex 0872673250?

A pin-compatible alternative would need to match the 32-position, dual-row, 2.00mm pitch, unshrouded, SMT footprint. Cross-reference against other Milli-Grid 87267 headers or a different series with the same pitch and circuit count — confirm the board layout and mating half before committing.
