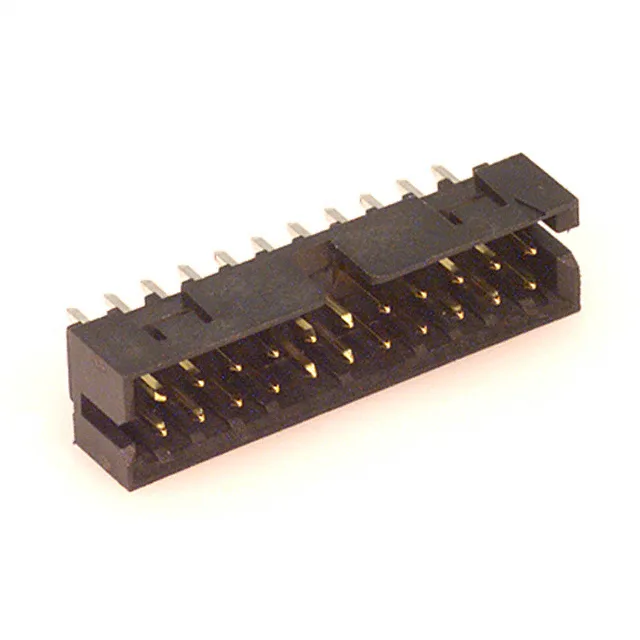

Molex Milli-Grid 87331 header, order code 0873312220, 22 positions, dual row, 2.00 mm pitch, gold-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87331 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0873312220 is the 22-circuit member of Molex's Milli-Grid 87331 board-to-wire header series, a dual-row shrouded header with 2.00 mm pitch. Gold-plated mating contacts on phosphor bronze, through-hole mounting, and a latch holder fastening system. The housing is black glass-filled PA46 rated UL94 V-0.
The 0873312220 is marked Obsolete by Molex. A board spin may be required for a functional replacement.
The 0873312220 is available through independent surplus channels. Submit an RFQ for current availability and lot-specific pricing.
