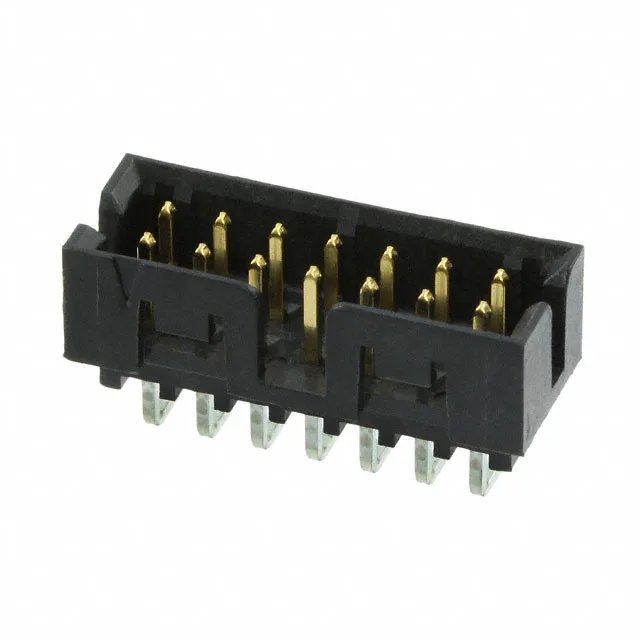

0873331420 — Molex product photo
Molex

Molex 0873331420 Milli-Grid Header – 14 Pos, 2.00mm Pitch

MPN0873331420
Obsolete

Molex Milli-Grid 87333 header, 0873331420, 14 circuits, 2.00mm pitch, through-hole right-angle, shrouded 4-wall, gold mating finish, UL94 V-0.

$1.9300Ref. price · indicative, final on quote
0873331420 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0873331420 Technical Specifications
ParameterValue
SeriesMilli-Grid 87333
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.248\" (6.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact length - post0.085\" (2.16mm)
Contact finish - matingGold
Contact length - mating0.141\" (3.60mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-Fit and Orientation

The 0873331420: The 2.00mm pitch and 14 circuits in a dual-row layout set the board footprint: 0.079" row spacing means the outer rows sit 2.00mm apart, matching the Milli-Grid receptacle pattern. The keying slot in the housing ensures the mating half can only be inserted one way — no mis-mate risk on the line.

Contact Interface and Plating

The post side carries tin-lead (74.8µin) for solder-joint compatibility with standard leaded solder processes.

This header mates with Milli-Grid 87333 series crimp receptacles — the 14-position, 2-row female housing (e.g., 087331-1471 or similar) accepts the matching crimp terminal.
