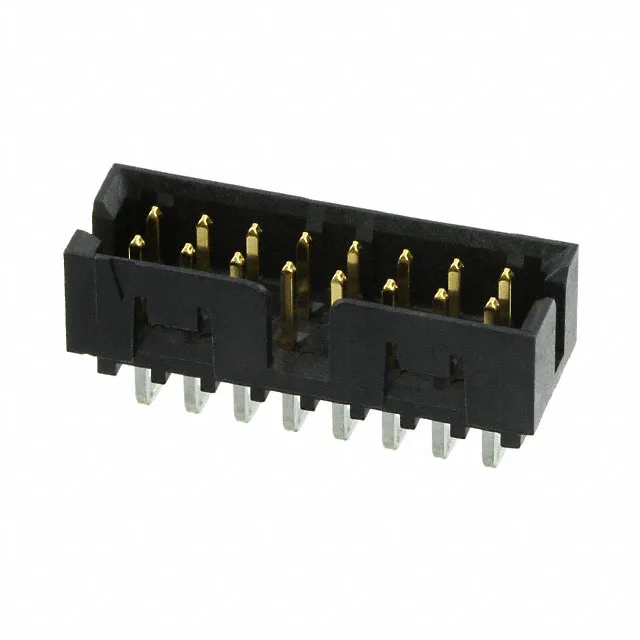

Molex 0873331620
MPN0873331620
Obsolete
$2.2200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87333 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.085\" (2.16mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
