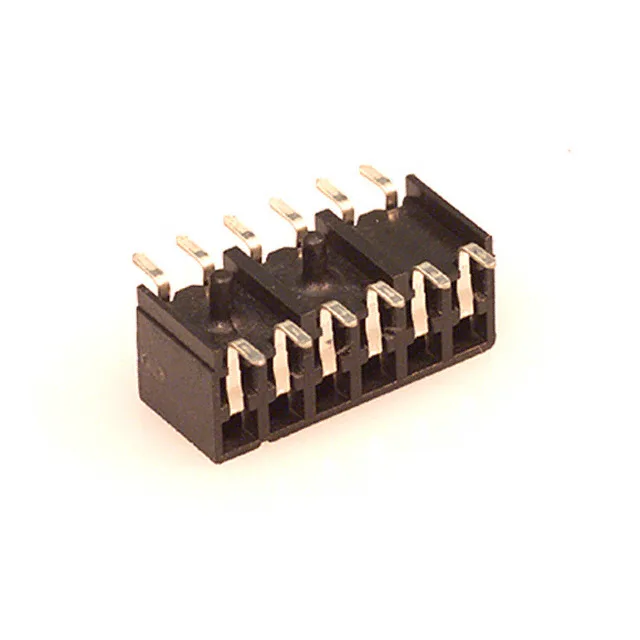

0873681220 — Molex product photo
Molex

Molex 0873681220 Milli-Grid 87368 12-Pin Receptacle –

MPN0873681220
Obsolete

Molex Milli-Grid 87368 series, 12-position receptacle, 2.00mm pitch, SMT right-angle, gold mating finish, 1A per contact, 125VAC, tube package.

$1.9750Ref. price · indicative, final on quote
0873681220 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0873681220 Technical Specifications
ParameterValue
SeriesMilli-Grid 87368
GenderFemale Socket
Mounting typeSurface Mount, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A
Operating temperature-55°C ~ 105°C
Insulation colorBlack
Insulation height0.193\" (4.90mm)
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Guide
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 0873681220: Gold mating finish at 15.0 µin thickness — rated for repeated mating cycles. Tin-lead post finish (100.0 µin) is compatible with standard leaded solder processes.

Female socket contacts, square pin shape, push-pull fastening. Solder termination for surface mount.

Application Range and Environmental Limits

Rated for Automotive, General Purpose, and Telecommunications applications. Voltage rating 125VAC, current 1A per contact — suitable for signal-level interconnects, not power distribution.

Frequently asked questions

Is 0873681220 compatible with other Milli-Grid 87368 connectors?

Yes, it mates with Milli-Grid 87368 series pin headers of the same 2.00mm pitch and 12-position count. The push-pull fastening and board guide are standard for the series. Confirm the header's orientation (vertical vs right-angle) and termination style to ensure mechanical fit.
