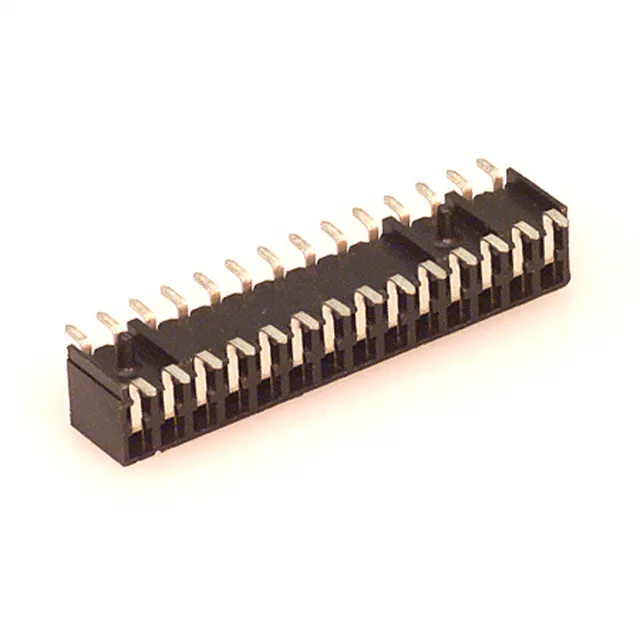

Molex Milli-Grid 87368 receptacle, order code 0873682820, 28 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87368 |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.193\" (4.90mm) |
| Style | Board to Board or Cable |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0873682820 is the 28-position member of Molex's Milli-Grid 87368 board-to-board or cable receptacle line, dual-row, 2.00 mm pitch. Gold-plated mating contacts rated 1 A at 125 VAC, surface-mount right-angle termination with a push-pull fastening system and board guide.
The 0873682820 is listed as Obsolete by Molex.
The 0873682820 is available through independent surplus channels. Submit an RFQ for current availability and pricing on the specific lot quantity.
