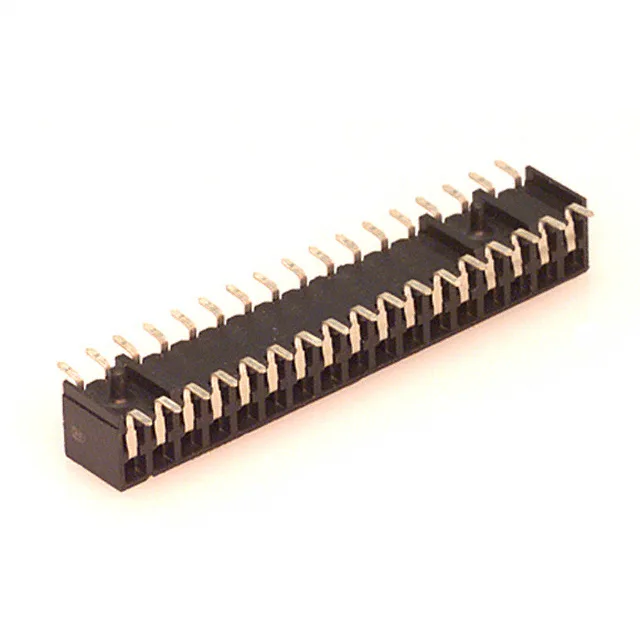

Molex Milli-Grid 87368 receptacle, order code 0873683424, 34 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87368 |
| Gender | Female Socket |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.193\" (4.90mm) |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 34 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0873683424 is the 34-circuit member of Molex's Milli-Grid 87368 receptacle line, a board-to-board or cable interconnect with dual rows at 2.00 mm pitch. Gold-plated mating contacts rated 1 A per circuit at 125 VAC; the surface-mount right-angle termination suits board-edge or space-constrained layouts.
Board to Board or Cable style, push-pull fastening, female socket contacts with square contact shape.
