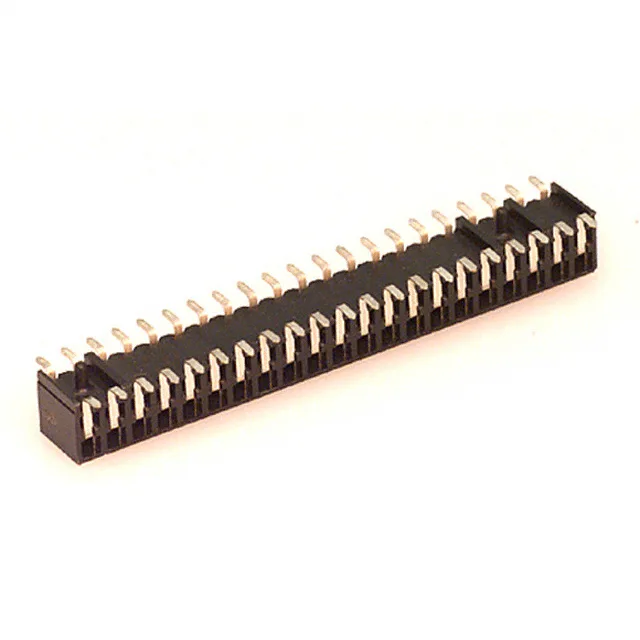

Molex Milli-Grid 87368 receptacle, order code 0873684224, 42 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87368 |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.193\" (4.90mm) |
| Style | Board to Board or Cable |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 42 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0873684224 is the 42-circuit member of Molex's Milli-Grid 87368 board-to-board or cable receptacle line. It carries gold-plated mating contacts rated 1 A at 125 VAC and mounts surface-mount right-angle with solder termination.
The 0873684224 is available to order.
The 0873684224 is a receptacle from the Milli-Grid 87368 series, listed as a board-to-board or cable style.
