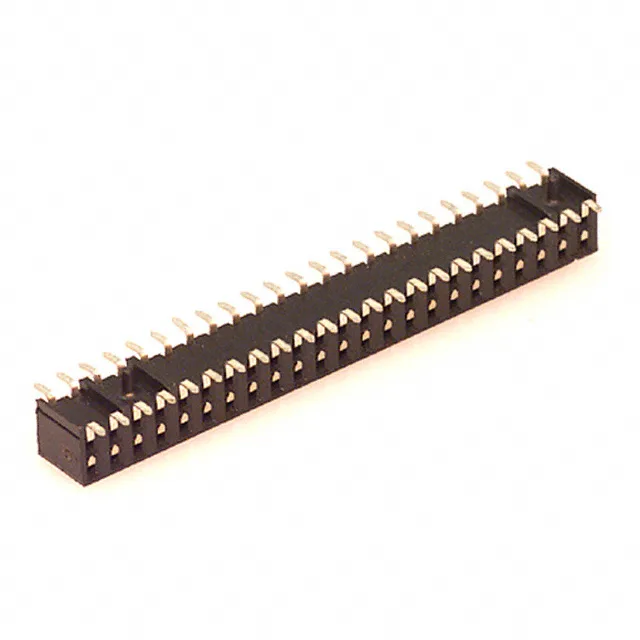

Molex Milli-Grid 87368 receptacle, order code 0873684624, 46 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination.
Molex 0873684624 Milli-Grid 87368 Receptacle, 46-Pos 2.00mm
MPN0873684624
Active
Molex Milli-Grid 87368 receptacle, order code 0873684624, 46 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination.
$7.4011Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87368 |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.193\" (4.90mm) |
| Style | Board to Board or Cable |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 46 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the 0873684624's connector style and series?
The 0873684624 is a Board to Board or Cable style receptacle in the Milli-Grid 87368 series.
