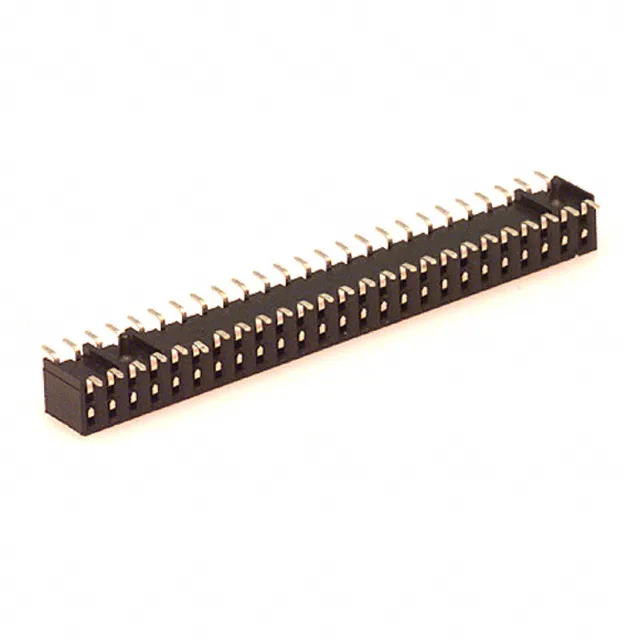

Molex Milli-Grid 87368 receptacle, order code 0873685020, 50 positions, dual row, 2.00 mm pitch, 1 A, 125 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87368 |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.193\" (4.90mm) |
| Style | Board to Board or Cable |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 50 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0873685020 is the 50-circuit member of Molex's Milli-Grid 87368 board-to-board or cable receptacle line, dual-row, 2.00 mm pitch.
Molex lists the 0873685020 as Obsolete; no official successor or second source is recorded.
