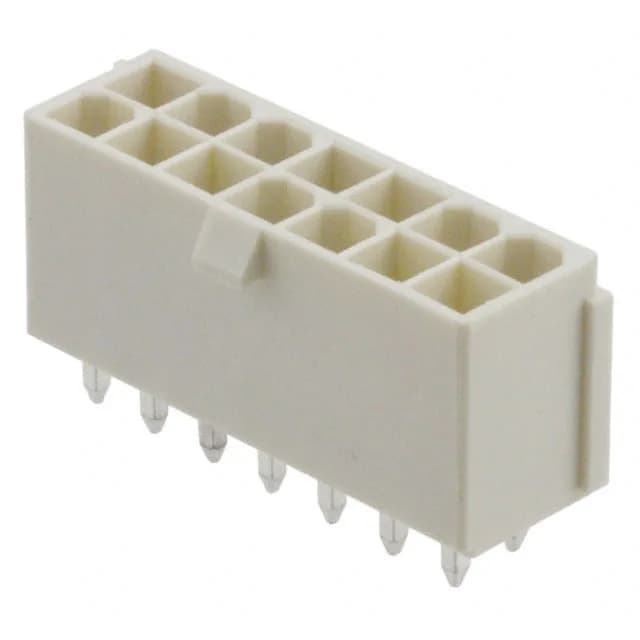

Molex Mini-Fit Jr 87427 series, 0874271442 – 14-position, 2-row, 4.20mm pitch, shrouded header, through-hole, solder termination, tin-plated contacts, locking ramp, UL94 V-0, beige insulation.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 87427 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 14 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0874271442: The shrouded 4-wall housing guides the plug into alignment and protects the pins during handling.
RoHS compliance is standard for this series; no separate certificate is needed for BOM declaration.
Sourced through independent distribution against an RFQ – no stock-holding claim. Submit a quote request with your target quantity and we will confirm availability and current pricing.
This header mates with a Mini-Fit Jr receptacle housing from the same 87427 series – typically a 14-position, 2-row housing that accepts the matching crimp terminals.
Yes – the Mini-Fit Jr 87427 series is manufactured RoHS compliant. No separate certificate is required for BOM declaration.
