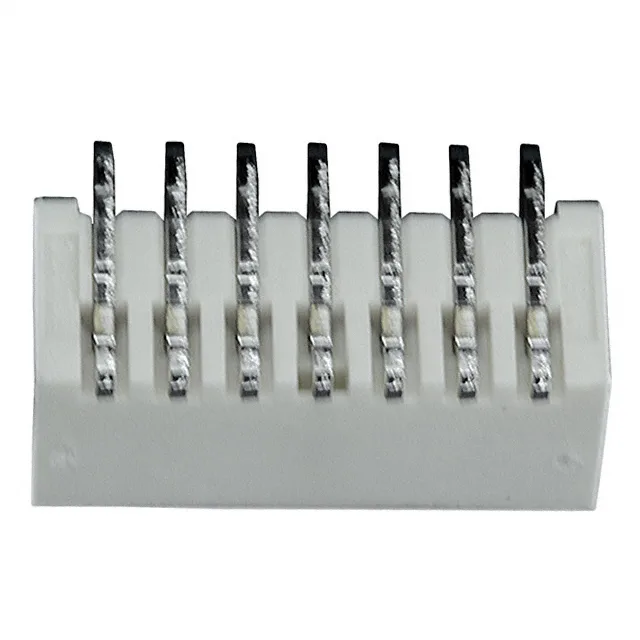

Molex Pico-SPOX 87437 header, order code 0874370733, 7 positions, single row, 1.50 mm pitch, tin-lead mating contacts, surface mount, solder termination, shrouded 4-wall, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Pico-SPOX 87437 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Beige |
| Insulation height | 0.199\" (5.05mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mated stacking heights | 7.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 7 |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0874370733 is the 7-circuit member of Molex's Pico-SPOX 87437 shrouded header line, a single-row board-to-cable header with 1.50 mm pitch. Mating contacts are tin-lead plated, rated for general-purpose and medical equipment use.
Molex has marked the 0874370733 as Obsolete. Stock is limited to existing distributor inventory and independent surplus channels. Quantities are confirmed at RFQ; no forward production is planned.
Molex has not published a direct replacement or cross-reference for the 0874370733. A board spin may be required to use a different connector family.
RoHS and REACH status should be verified against the lot-specific certificate from the distributor.
