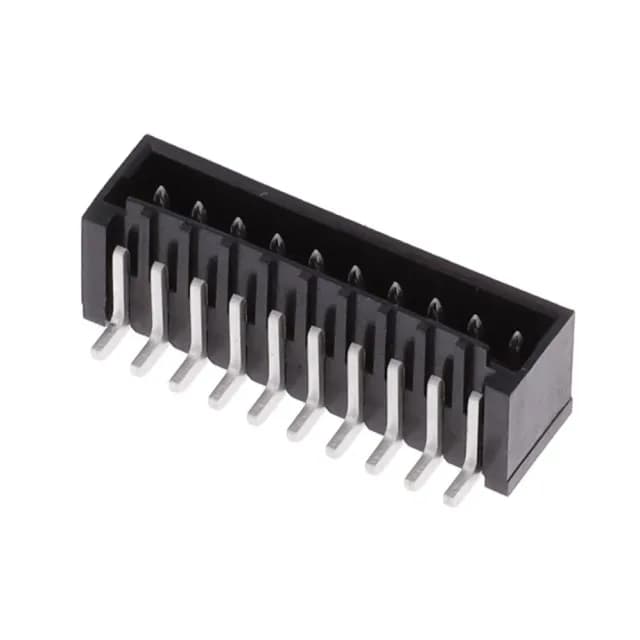

Molex Pico-SPOX 87437 series, 0874371063, board-to-cable/wire header, 10 circuits, 1.50mm pitch, SMT, shrouded 4-wall, tin-plated contacts, 7.4mm mated stack height.
| Parameter | Value |
|---|---|
| Series | Pico-SPOX 87437 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.199\" (5.05mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 7.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0874371063: This is a 10-position, single-row surface-mount header from the Molex Pico-SPOX 87437 series. The contact mating length is 0.106 inches (2.70 mm), providing a solid wipe distance for the tin-on-tin interface.
Buyers need the correct receptacle to complete the connection; without this the header is unusable.
Design engineers require this to ensure the connector can handle the circuit load without overheating.
Sourcing buyers need immediate availability to avoid production delays.
Comparison shoppers seek drop-in replacements for cost or supply chain flexibility.
Engineers need PCB land pattern dimensions to design the board layout correctly.
Production buyers need volume pricing to budget and negotiate.
