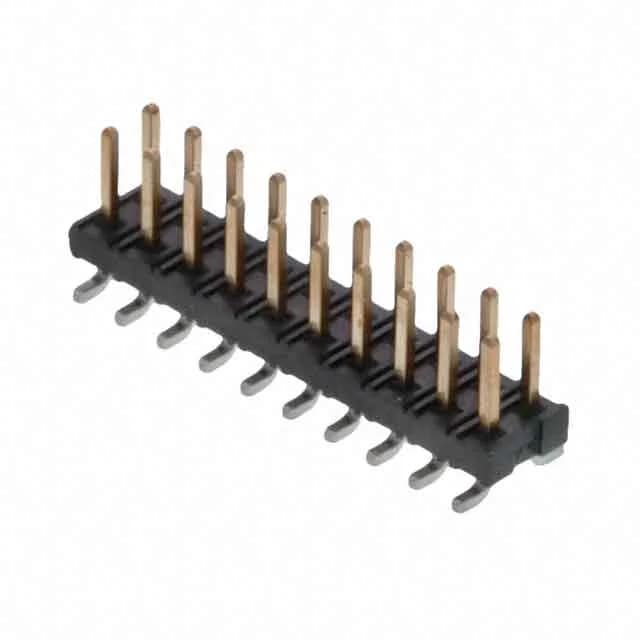

Molex Milli-Grid 87759 header, breakaway, order code 0877592015, 20 positions, dual row, 2.00 mm pitch, gold-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87759 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.150\" (3.81mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0877592015 is the 20-position member of Molex's Milli-Grid 87759 header line, a dual-row breakaway style for board-to-board or cable interconnects. Mating contacts are gold-plated over phosphor bronze, rated for 30.0µin (0.76µm) thickness. The unshrouded push-pull housing is rated UL94 V-0.
Both the mating pitch and row spacing are 0.079" (2.00 mm), giving a 2.00 mm grid for board layout.
