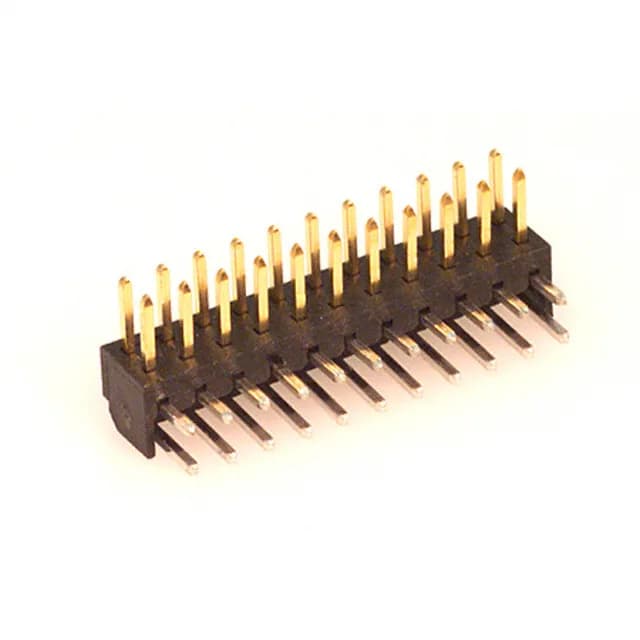

Molex Milli-Grid 87760 series, 0877602216, board-to-board or cable header, 22 positions, 2 rows, 2.00 mm pitch, right-angle, through-hole, gold mating finish, unshrouded, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87760 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.169\" (4.30mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0877602216: ROHS3 compliant.
The tin-plated posts are compatible with lead-free reflow profiles.
The connector is listed for automotive, general purpose, and telecommunications applications.
It mates with any Milli-Grid 87760 series receptacle (crimp or IDC) that has 22 circuits, dual rows, and 2.00 mm pitch. The push-pull interface means no locking latch — the retention is friction-based.
