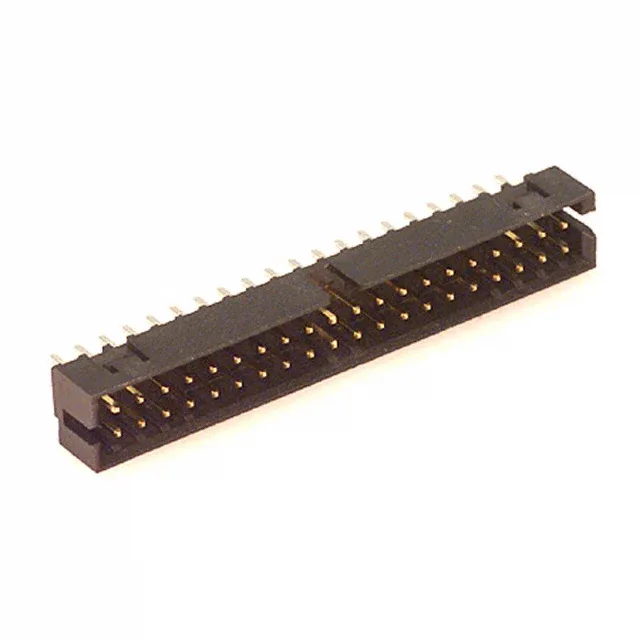

Molex Milli-Grid 87831 series, 0878314020, vertical through-hole header, 40 positions, 2 rows, 2.00mm pitch, shrouded 4-wall, gold-plated mating contacts, rated 2A per circuit at 125V, UL94 V-0 black nylon housing.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87831 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 125V |
| Current rating | 2A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Tin plating on the solder tails keeps the board-side termination cost-effective.
This header mates with Milli-Grid 87831 series crimp receptacles and IDC sockets — both 40-position, 2.00mm pitch, 2-row. Through-hole mounting with 0.098" (2.50mm) post length and 0.141" (3.60mm) mating pin length. The 2.00mm row spacing matches the pitch, keeping the board footprint compact — a 40-position header occupies roughly 20mm × 8mm of board area including the shroud walls.
The mating half is a Milli-Grid 87831 series 40-position, 2-row, 2.00mm pitch receptacle — either a crimp housing or an IDC socket, both with the matching latch feature. The exact order code depends on termination type (crimp vs IDC) and wire gauge.
