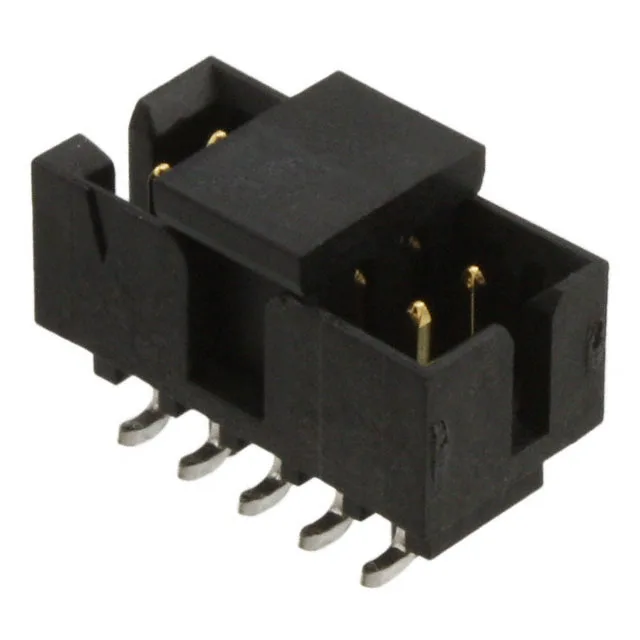

Molex Milli-Grid 87832 header, order code 0878321009, 10 positions, dual row, 2.00 mm pitch, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87832 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Features | Board Guide, Pick and Place |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0878321009 is the 10-circuit member of Molex's Milli-Grid 87832 header line, a dual-row shrouded header on 2.00 mm pitch for board-to-board or cable duty. Gold-plated mating contacts and a latch holder keep the connection stable; the four-wall shroud guides the mating half and protects the pins during handling.
Surface-mount solder termination with a board guide and pick-and-place feature for automated assembly.
Molex is the manufacturer.
The style is Board to Board or Cable, and the series is Milli-Grid 87832.
