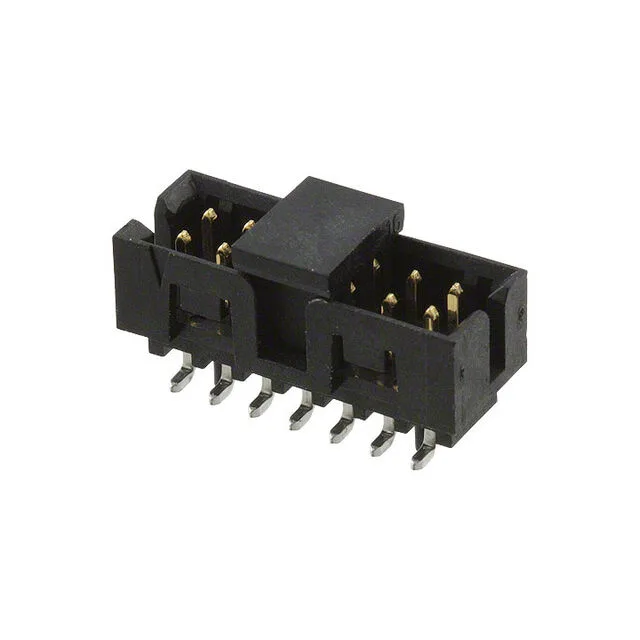

0878321412 — Molex product photo
Molex

Molex 0878321412 Milli-Grid 87832 Header, 14-Pos, 2.00mm

MPN0878321412
Active

Molex Milli-Grid 87832 header, order code 0878321412, 14 positions, dual row, 0.079" (2.00mm) pitch, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall, latch holder.

$0.9465Ref. price · indicative, final on quote
0878321412 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0878321412 Technical Specifications
ParameterValue
SeriesMilli-Grid 87832
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.252\" (6.40mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
FeaturesBoard Guide
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.141\" (3.60mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

14-position SMT header with 4-wall shrouding

The 0878321412 is the 14-circuit member of Molex's Milli-Grid 87832 header line, a dual-row board-to-board or cable interconnect on 0.079" (2.00mm) pitch. Gold-plated mating contacts and a shrouded 4-wall housing with latch holder provide secure mating in automotive, general-purpose, and telecom equipment.

Surface-mount termination and housing details

Termination is surface-mount solder; the header mates with Milli-Grid 87832 receptacles. The glass-filled nylon housing is rated UL94 V-0 and carries a board guide for alignment during assembly. The header ships in tube packaging.

Frequently asked questions

What is the closest pin-compatible alternative to the 0878321412 in the Milli-Grid 87832 series?

No pin-compatible alternative is listed in the series for this 14-position, dual-row, 0.079" (2.00mm) pitch header. The 0878321412 is the only 14-circuit member in the Milli-Grid 87832 header line with these specific specs.

What compliance documentation does Molex provide for the 0878321412?

RoHS and REACH compliance documentation is available from Molex per standard product support.
