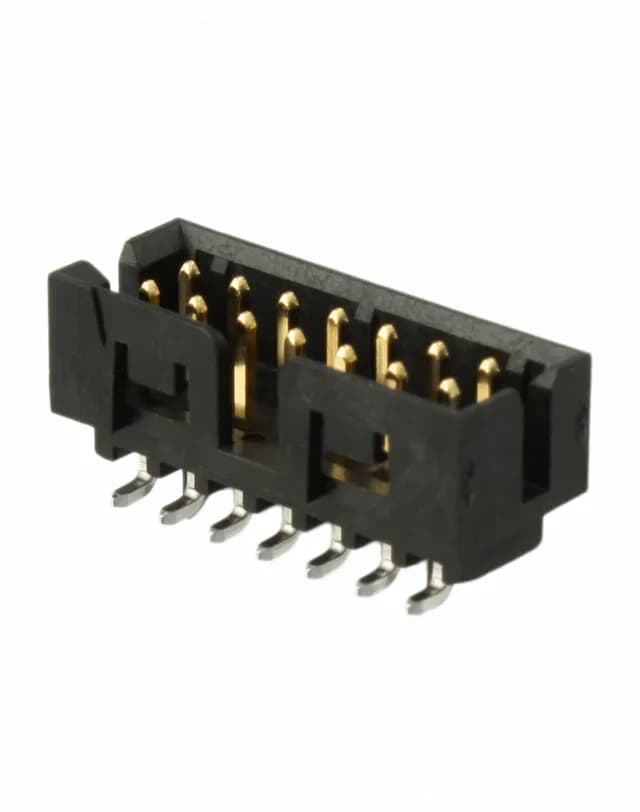

Molex Milli-Grid 87832 series header, 14 positions, 2 rows, 2.00 mm pitch, surface mount, gold mating finish, shrouded 4-wall with latch holder, black UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87832 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0878321421 is a 14-position, dual-row header from the Molex Milli-Grid 87832 series.
ROHS3 compliant.
The SMT termination requires a reflow profile that matches the 260°C peak capability of the UL94 V-0 nylon housing. The board guide and latch holder add positive alignment during automated pick-and-place and reflow.
The 0878321421 is available through independent distribution against an RFQ.
The mating half is a Milli-Grid 87832 series receptacle — either a crimp housing or IDC connector, both at 2.00mm pitch, 14 positions, 2 rows. The latch holder on this header locks with the corresponding latch on the receptacle.
No pin-compatible direct replacement is listed by Molex for this active part number. The Milli-Grid 87832 series includes other position counts and plating options, but no alternative with the same 14-position, 2.00mm pitch, gold plating, and latch holder combination. Stick with the exact MPN for a guaranteed form-fit-function match.
