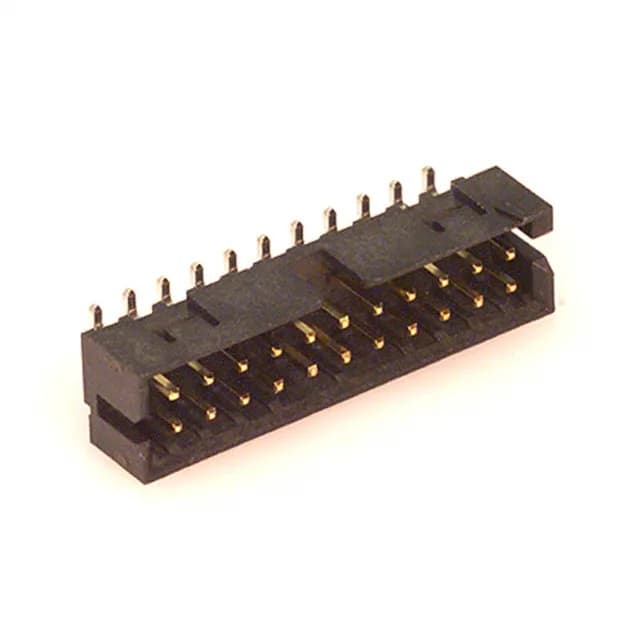

22-Position, 2.00mm Pitch SMT Header
The 0878322220 is a 22-position, dual-row header from the Molex Milli-Grid 87832 series. The header is surface-mount (SMT) with solder termination, designed for automated pick-and-place assembly.
Shrouded Protection and Keying
The latch holder secures the mated pair, which is especially relevant for applications listed as Automotive, General Purpose, and Telecommunications — where the connector may be routed near moving assemblies or accessed for service.
This header mates with Milli-Grid 87832 series receptacle housings (e.g., 51110-xx50) that accept crimp terminals. The 2.00mm pitch and 22-position count must match exactly — the mating receptacle is a separate line item. The male pins are square phosphor bronze, 0.141" (3.60mm) mating length, which provides a reliable wiping action during insertion.
