Board Fit and Circuit Count

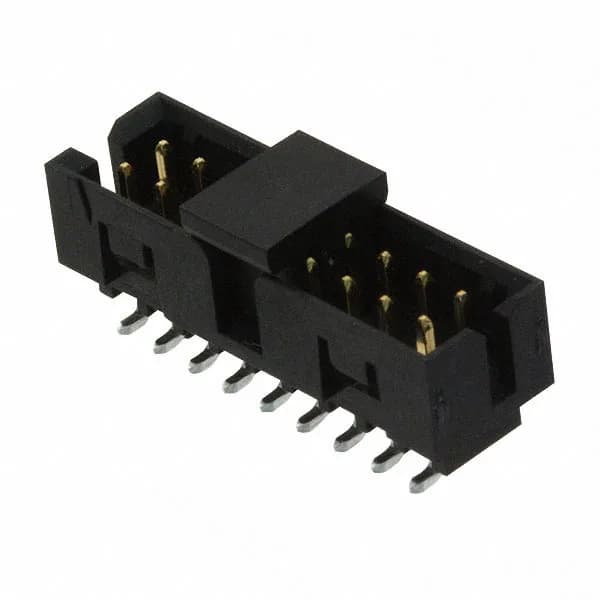

The 0878325822: This is an 18-position, dual-row header on 2.00mm pitch — the board footprint is 2 rows × 9 positions per row, with 2.00mm row spacing. The 0.079" pitch sets the routing density: you get 18 circuits in a compact SMT package, suitable for board-to-board or cable interconnects in automotive, telecom, and general-purpose equipment. The header is fully loaded — all 18 positions are populated, so no blank spots to account for in the BOM.
Contact Interface and Mating Cycles
Shroud, Latch, and Handling Features
Additional features include a board guide for accurate placement during reflow, a keying slot to prevent mis-mating, and a pick-and-place pad for automated assembly — the part ships in tape-and-reel or cut-tape format.
The header is surface-mount only — no through-hole option. The insulation height of 0.252" (6.40mm) gives the mated pair a low profile above the board, useful in space-constrained assemblies.
