At this thickness the connector is rated for moderate reconnect duty — typical for equipment that sees periodic field service or board-level testing during manufacturing.

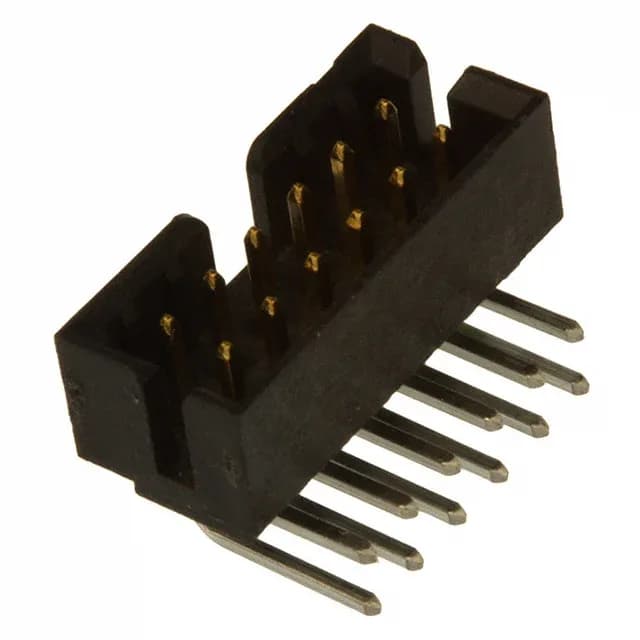

Molex 0878331220 Milli-Grid 12-Pin Right-Angle Header 2mm
MPN0878331220
Active
Molex Milli-Grid 87833 series header, 12 positions, 2.00mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated phosphor bronze contacts, UL94 V-0 nylon, -55°C to 105°C.
$2.1300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 87833
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87833 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.085\" (2.16mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the mating connector for 0878331220?
Mates with a Milli-Grid 87833 series receptacle housing, 12 positions, 2.00 mm pitch, dual-row. The mating half must be keyed or non-keyed depending on the slot orientation.
