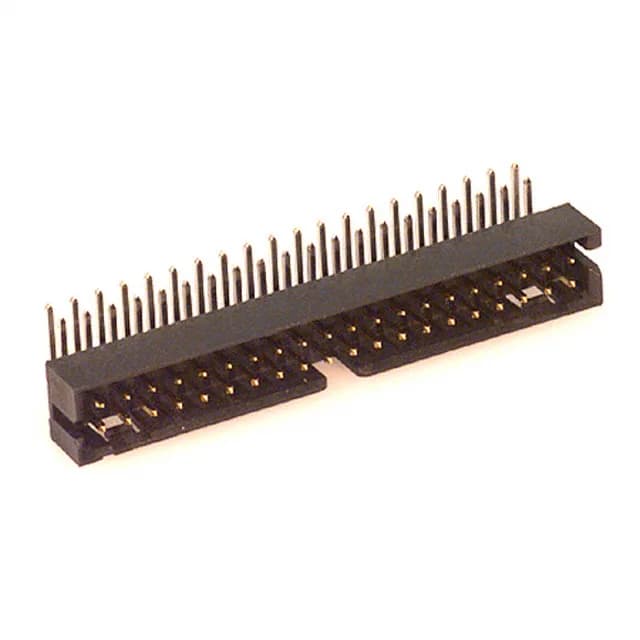

Molex 0878334020 Milli-Grid Header, 40 Pos, 2mm Pitch, R/A

MPN0878334020
Active

Molex Milli-Grid 87833, 40-position right-angle header, 2.00mm pitch, dual-row, shrouded 4-wall, gold mating finish, through-hole solder termination, active production.

$5.3800Ref. price · indicative, final on quote
Molex 0878334020 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMilli-Grid 87833
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0878334020 key specifications
ParameterValue
SeriesMilli-Grid 87833
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.248\" (6.30mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable

All specifications

0878334020 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions40
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.085\" (2.16mm)
Contact finish - matingGold
Contact length - mating0.141\" (3.60mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

40-Position Right-Angle Header in the Milli-Grid 87833 Series

The 0878334020: The 2.00mm pitch and 2.00mm row spacing set the PCB footprint for dense signal routing. The solder tails are tin-plated (74.8 µinch) for reliable through-hole soldering.

Latch Holder Retention for Vibration Resistance

This is a practical feature for automotive, telecom, or general-purpose equipment where the assembly sees movement. The black insulator provides visual contrast for inspection.

Comparing the 40-Position to Lower-Count Siblings

The 40-position variant (0878334020) shares the same 2.00mm pitch, dual-row layout, gold mating finish, and right-angle through-hole mounting as the 24-position (0878332420) and 20-position (0878332021) versions. For most signal-level interconnects, the 15.0 µinch gold on the 40-position is adequate.

Frequently asked questions

What is the pitch of Molex 0878334020?

The mating pitch is 2.00mm (0.079 inches), and the row spacing is also 2.00mm. This is a dual-row header with 40 positions arranged in a 2x20 grid.

What is the mating connector for 0878334020?

This header mates with a Milli-Grid 87833 series receptacle (female connector) that accepts the same 2.00mm pitch and latch holder. The exact mating part number depends on your wire termination or cable assembly requirements.

Is 0878334020 RoHS compliant?

Yes, it is ROHS3 compliant, meeting the latest RoHS directive requirements.

Can 0878334020 be used in automotive applications?

Yes, the listed applications include Automotive, General Purpose, and Telecommunications. The latch holder and UL94 V-0 housing make it suitable for vibration-prone environments, though the temperature range is -55°C to 105°C.
