Through-hole right-angle, shrouded
The 0878335321: Rated for board-to-board or cable duty, the header carries gold-plated mating contacts on a 0.079" pitch with tin-plated solder tails for through-hole right-angle mounting.

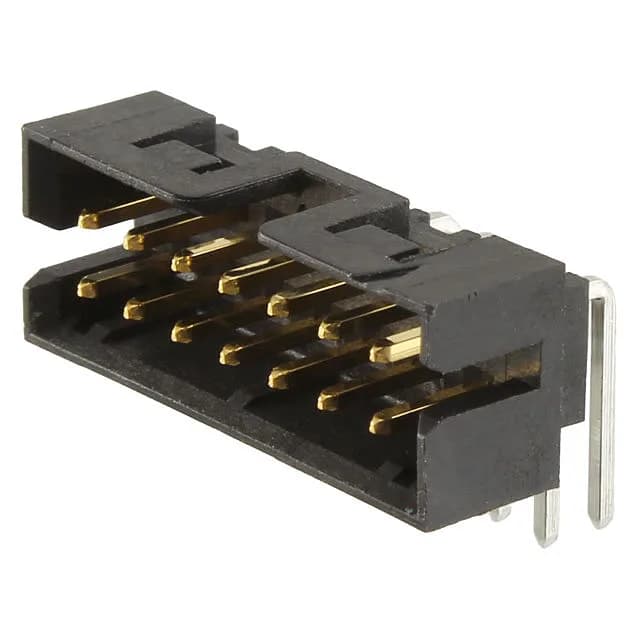

Molex 0878335321 Header, 14-Pos 2.00mm Milli-Grid 87833
MPN0878335321
Active
Molex Milli-Grid 87833 header, order code 0878335321, 14 positions, dual row, 0.079" (2.00mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
$2.9200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87833 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 0878335321 and how do I get a price?
The 0878335321 is stocked in tube packaging. Request a quote through the distributor's RFQ system for current pricing and lead time.
