Molex 0901220764 — Pin Headers

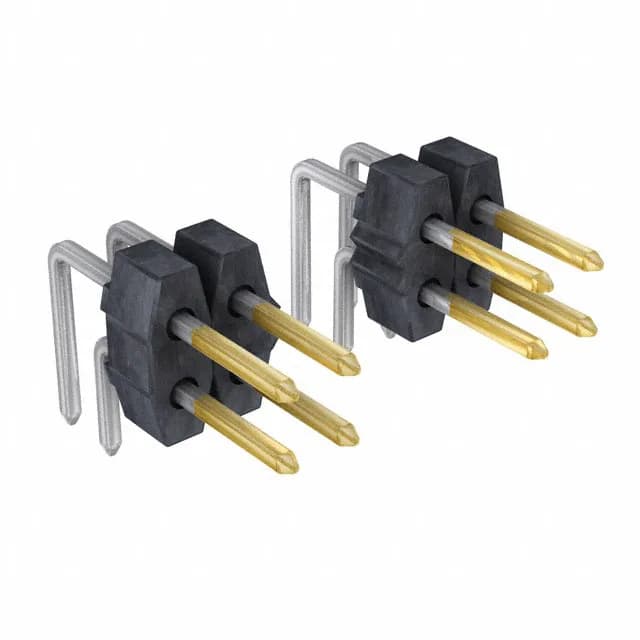

Molex 0901220764 C-Grid III Header, R/A 8POS 2.54mm Pitch

MPN0901220764
Active

Molex C-Grid III 90122 series, 0901220764, unshrouded breakaway header, 8 circuits, 2.54mm pitch, right-angle through-hole, gold-plated mating pins, bulk package.

$2.3500Ref. price · indicative, final on quote
Molex 0901220764 datasheet (PDF)
RoHSROHS3 Compliant
SeriesC-Grid III 90122
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0901220764 key specifications
ParameterValue
SeriesC-Grid III 90122
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialBrass
Insulation colorBlack
Insulation height0.242\" (6.14mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0901220764 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold
Contact length - mating0.266\" (6.75mm)
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Pitch and Footprint for Board Layout

The 0901220764: The 0.114" (2.90 mm) post length is the solder tail dimension for the through-hole joint.

Mating Interface and Contact Finish

Unshrouded male pins (square cross-section) mate with the corresponding C-Grid III receptacle housing — the bare pins rely on the housing for alignment and retention.

Housing is black glass-filled polyester rated UL94 V-0 — the flame rating covers equipment inside an enclosure where the connector is part of the internal wiring. ROHS3 Compliant per the current lifecycle entry.

Frequently asked questions

What is the pitch of Molex 0901220764?

The mating pitch is 0.100" (2.54 mm) for both the row spacing and the position-to-position spacing. The board footprint is a 2x4 grid at that pitch.

Is 0901220764 shrouded or unshrouded?

It is unshrouded — a bare pin header. The pins are exposed and require a separate C-Grid III receptacle housing for a complete wire-to-board connection.

How can I get pricing and availability for 0901220764?

We source this part through independent distribution. Submit an RFQ with your target quantity and lead-time requirement; we confirm current pricing and availability at quote time.
