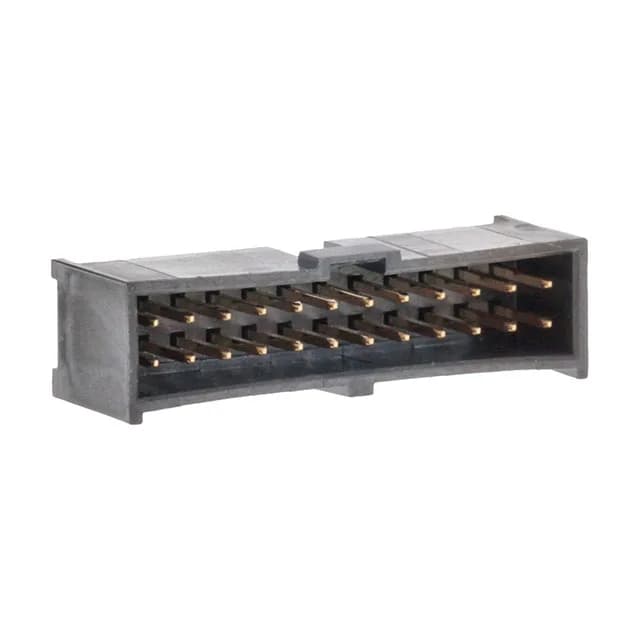

Molex C-Grid III 90130 series, 0901301224, Board to Cable/Wire header, 24 circuits, 2.54mm pitch, shrouded 4-wall, vertical through-hole, gold-plated male pins, latch holder.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90130 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.429\" (10.90mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0901301224 is a 24-position, 2-row header from the Molex C-Grid III 90130 series, designed for board-to-wire applications.
Overall contact length is 0.510" (12.95mm), with a 0.266" (6.75mm) mating section.
The glass-filled polyester housing is rated UL94 V-0. The standard package is a tray.
The 0901301224 mates with a C-Grid III 90130 series receptacle housing that accepts 24 circuits in a 2-row configuration at 2.54mm pitch.
The C-Grid III 90130 series includes other position counts and orientations, but a direct replacement for the 24-position vertical shrouded header would require the same pitch, row spacing, and latch holder.
