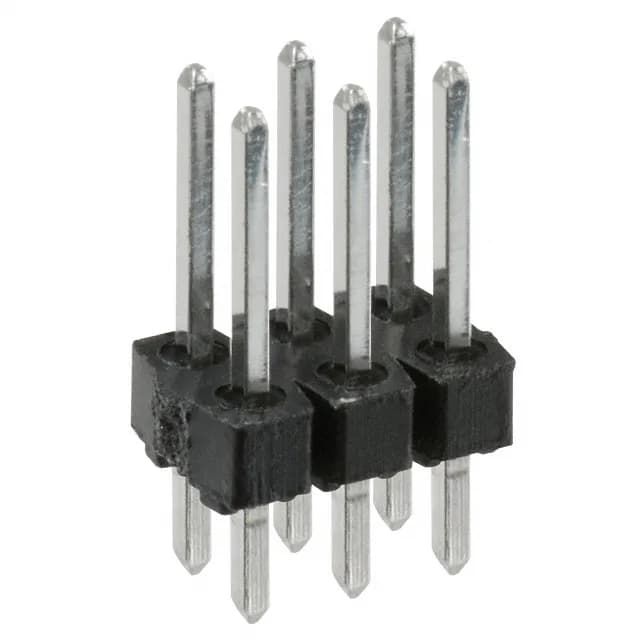

Molex C-Grid III 90131 series, 0901310123, a 6-position unshrouded breakaway header, 2.54mm pitch, dual-row, through-hole, tin-plated contacts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90131 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.478\" (12.15mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 0901310123 is a 6-position, dual-row unshrouded header from Molex's C-Grid III 90131 series. It mates with a C-Grid III receptacle housing (sold separately) to form a board-to-wire connection. The breakaway design lets you depopulate positions if the BOM needs fewer than six circuits.
This header mates with a C-Grid III 90131 series receptacle housing (e.g., Molex 0901310163 or similar 6-position dual-row housing). Use the matching crimp terminals (Molex 0901310063 or equivalent) for wire termination.
Yes, it is ROHS3 compliant per the lifecycle record.
