The through-hole solder tails are tin-plated (3.00µm) and measure 0.114" (2.90mm) long – a standard board thickness of 1.6mm leaves enough tail protrusion for a reliable solder fillet.
Board-to-Cable Wiring – Which Housing and Terminal Fit

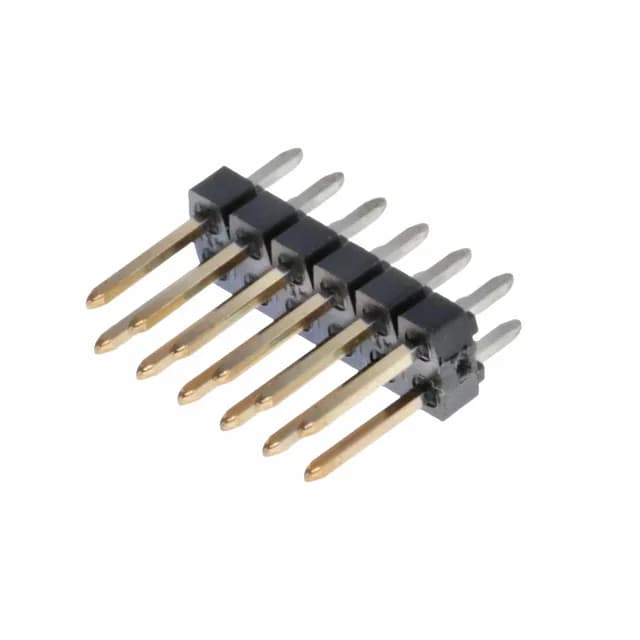

Rated for board-to-cable/wire applications, this header mates with C-Grid III receptacle housings (e.g., 90119 series) that accept the 70058-series crimp terminals. The unshrouded design means the pin tips are exposed – the mating housing provides the polarisation and retention. Push-pull fastening keeps insertion force low; for vibration environments, a secondary lock in the housing (TPA) prevents terminal back-out.
