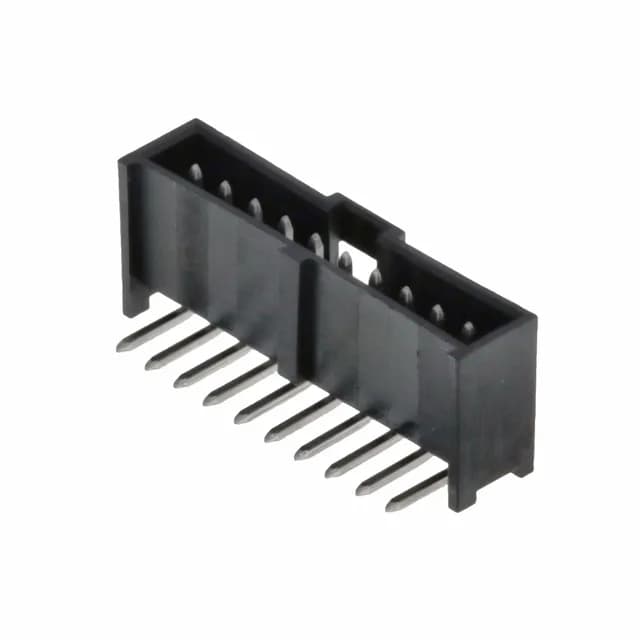

Molex C-Grid III 90136, right-angle pin header, 10 positions, 0.100" (2.54mm) pitch, through-hole solder termination, shrouded 4-wall housing, tin-plated square pins, latch holder, UL94 V-0 black polyester.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90136 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.284\" (7.21mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 0901362110: Mating contacts are tin-plated at 118.1 µinch (3.00 µm) thickness over brass square pins. The post finish is also tin, compatible with standard solder processes for through-hole mounting.
Confirm the circuit count and keying orientation match your harness assembly.
The 0901362110 mates with a C-Grid III 90136 series receptacle housing and crimp terminal. Verify the circuit count (10 positions) and single-row orientation.
