Molex 0901560148 — Connector Housings

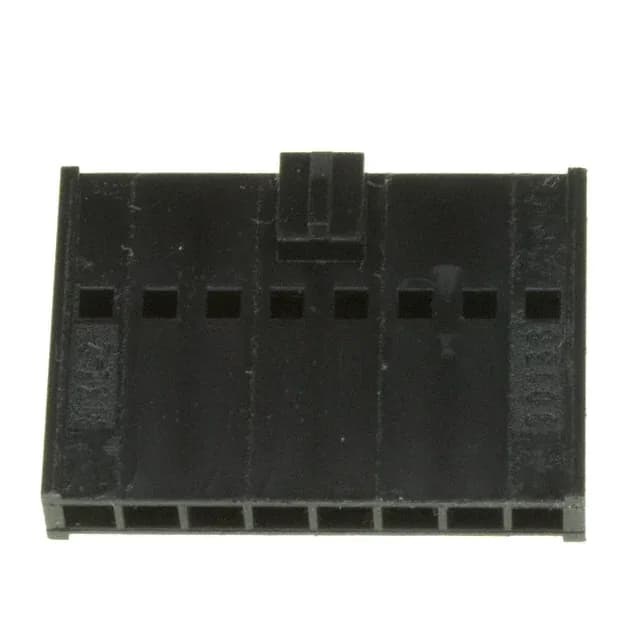

Molex C-Grid III 90156 0901560148, 8-Pos Receptacle Housing

MPN0901560148
Active

Molex C-Grid III 90156 receptacle housing, 0901560148, 8 positions, 1 row, 0.100" (2.54mm) pitch, free-hanging, crimp termination, locking ramp, black PPO, -55°C to 105°C.

$0.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC-Grid III 90156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0901560148 specifications
ParameterValue
SeriesC-Grid III 90156
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialPolyphenylene Oxide (PPO)
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions8

Product details

The housing accepts the standard C-Grid III crimp socket, which is ordered as a different line item and must be crimped onto your wire before insertion. Factor the terminal part number and its associated crimp tooling into your BOM; the housing alone is only half the connection.

Mating Header and Harness Assembly

The 0901560148 mates with any C-Grid III single-row, 0.100" pitch, 8-circuit male header — either vertical or right-angle, through-hole or SMT, depending on your board layout. For a wire-to-wire configuration, a second 0901560148 housing with male crimp terminals on the opposite harness half would be the mating pair. The crimp termination accepts 20-24 AWG wire with the correct C-Grid III terminal; the insertion tool seats the contact until the terminal retention tang locks into the housing cavity.

There is no official cross-reference from TE Connectivity or other brands; the C-Grid III family is Molex-specific.

Frequently asked questions

Are contacts included with 0901560148?

No — the listing explicitly notes Contacts Not Included. You must order the matching C-Grid III female crimp terminal separately and crimp it onto your wire before inserting it into the housing.

What is the mating header for 0901560148?

The 0901560148 mates with any C-Grid III single-row, 0.100" pitch, 8-circuit shrouded male header. The locking ramp requires a shrouded header — an unshrouded pin strip will not latch.
