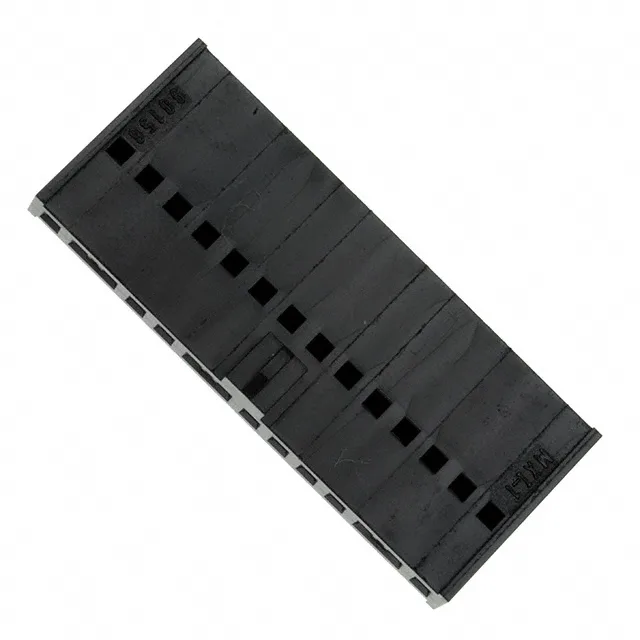

14-Circuit C-Grid III Receptacle Housing for Free-Hanging Harnesses
Wiring the Housing — Terminal Selection and Assembly
The 14 cavities accept Molex C-Grid III female socket contacts (crimp termination).
Molex C-Grid III 90156 series, 0901560154, 14-position single-row receptacle housing, 0.100" (2.54mm) pitch, crimp termination, free-hanging, locking ramp, black PPO, -55 to 105°C, ROHS3.
$4.8000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid III 90156 |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyphenylene Oxide (PPO) |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 14 |
Product details
Frequently asked questions
What is the pitch of molex 0901560154?
Buyers need to confirm the pitch matches their PCB or mating connector before ordering.
Does molex 0901560154 include contacts?
Crucial to know because the housing is sold without contacts, affecting BOM completeness.
What terminals work with molex 0901560154?
Designers and buyers need to source compatible crimp terminals for the receptacle housing.
What is the molex 0901560154 price and stock?
Sourcing buyers need real-time pricing and availability to plan procurement.
Is molex 0901560154 RoHS compliant?
Compliance status is mandatory for many industries to meet regulatory requirements.
What is the operating temperature range of molex 0901560154?
Maintenance techs and engineers need to ensure the housing can withstand application environment.
