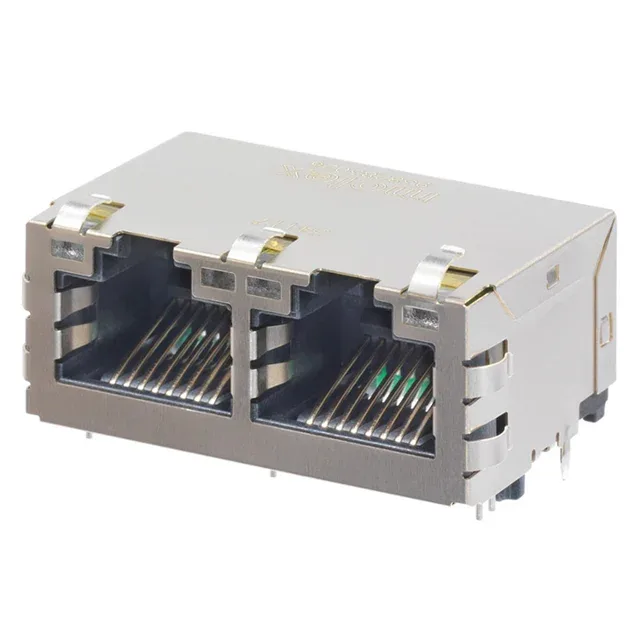

Molex 0938263006
MPN0938263006
Active
MXMAG DUAL PORT 8 CORE GIG W/ LE
$20.39Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMXMag 93826
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MXMag 93826 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green, Yellow - Green, Yellow |
| Shield material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.555\" (14.10mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 2 |
| Contact finish thickness | 2.00µin (0.051µm) |
| Number of cores per jack | 8 |
