Molex 0955032441

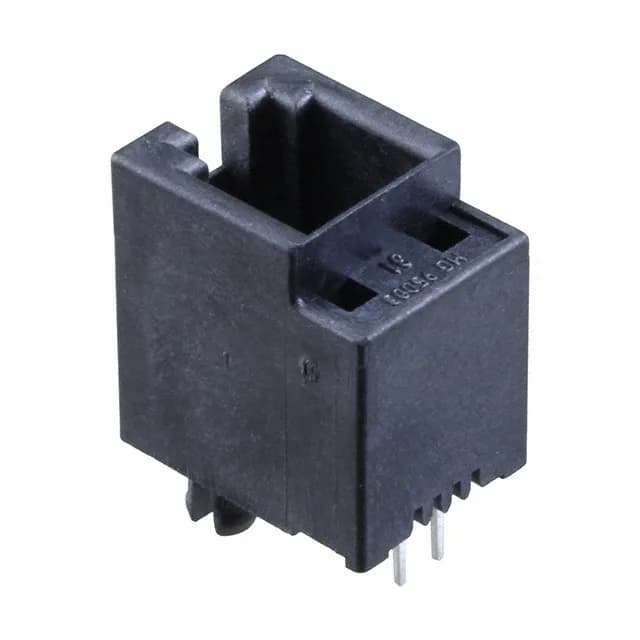

Molex 95503 0955032441 RJ22 Jack, 4p4c, Cat3, Board Lock

MPN 0955032441
Active

Molex Series 95503 RJ22 jack, 4p4c (RJ9/RJ10/RJ22), vertical through-hole, gold flash contacts, board lock, Cat3, unshielded, tray.

$1.4500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0955032441 key specifications
ParameterValue
Series95503
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
RatingsCat3
FeaturesBoard Lock
PackageTray
ShieldingUnshielded
OrientationVertical

All specifications

0955032441 additional specifications
ParameterValue
TerminationSolder
ManufacturerMolex
Tab directionUser Selectable
Contact finishGold
Rows1
Number of ports1
Contact finish thicknessFlash
Number of positions (Contacts)4p4c (RJ9, RJ10, RJ22)

Product details

4p4c RJ22 Jack with Board Lock — Molex Series 95503

The Molex 0955032441 is a vertical through-hole jack from the Series 95503 modular jack family, wired 4p4c and keyed for RJ9, RJ10, and RJ22 plugs. It carries a Cat3 rating, which limits the usable frequency to 16 MHz — fine for analog telephony, 10BASE-T Ethernet, or RS-232 extension, but not for anything faster. Single-row, single-port, unshielded — this is a straightforward voice-grade jack for a BOM that needs a known footprint and a reliable latch.

Cat3 is the oldest structured-cabling category still in common reference. It certifies the jack for frequencies up to 16 MHz with controlled impedance and crosstalk within the limits of TIA/EIA-568-B. For a 4p4c handset cord carrying analog voice or a 10BASE-T link, that's plenty of headroom. If the application calls for 100BASE-TX or PoE, this jack is the wrong choice — the unshielded construction and Cat3 bandwidth won't support the return loss or common-mode rejection those signals need.

Board Lock and Through-Hole Mounting

The board lock is a pair of solderable retention posts that press into plated through-holes alongside the signal pins. They take the mechanical load off the contacts when the plug is inserted or removed, which matters in a vertical jack that sees repeated cord swaps. That combination keeps the jack from lifting pads in a production rework or field-service environment.

This jack mates with any standard 4p4c modular plug — the same form factor used on analog telephone handsets (RJ22), some two-line desk phones (RJ10), and slimline handsets (RJ9). The 4p4c wiring pattern means four conductors in a 4-position body; the centre two positions are normally the tip and ring for a single phone line, with the outer pair available for a second line or a data-over-voice signal. The tab direction is user-selectable, which lets the installer orient the latch release whichever way the cable routing demands.
