Molex 98273 series, 16-position 2-row receptacle housing, crimp termination, free-hanging (in-line), PBT glass-filled, -40°C to 85°C, brown, RoHS3.
| Parameter | Value |
|---|---|
| Series | 98273 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -40°C ~ 85°C |
| Color | Brown |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Package | Tray |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 16 |

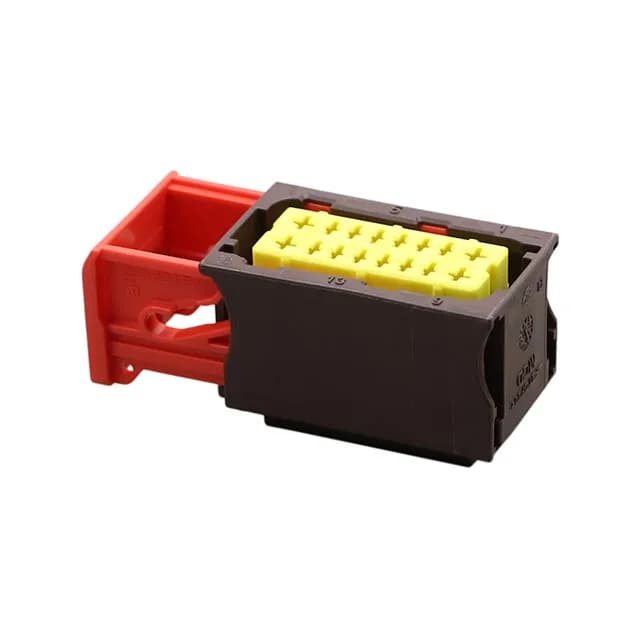

The Molex 0982731005 is a 16-position, 2-row receptacle housing from the 98273 series.
This receptacle housing mates with the corresponding 98273 series pin header — a 2-row, 16-position male header. The housing accepts female crimp sockets (sold separately).
The 0982731005 mates with a 2-row, 16-position pin header from the same 98273 series. The header is the male counterpart with the same pitch and circuit count.
Yes, the 0982731005 is ROHS3 compliant, meeting the EU RoHS directive for hazardous substance restrictions.
