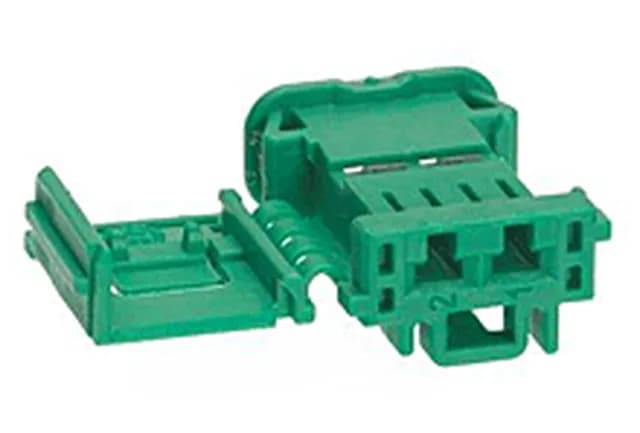

Molex NSCC 98819 0988191025, 2-position single-row receptacle housing, green PBT, latch holder, free-hanging, crimp termination, -40°C to 85°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | NSCC 98819 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 85°C |
| Color | Green |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The Molex 0988191025 is a 2-position, single-row receptacle housing from the NSCC 98819 series. It is a free-hanging (in-line) connector body designed to accept female socket crimp terminals — the contacts are ordered separately and are not included with this housing.
Current pricing and availability are confirmed at the time of quote — submit an RFQ for your target quantity.
No — the listing explicitly notes Contacts Not Included. This is an empty receptacle housing; the female socket crimp terminals must be ordered separately as a different line item.
The mating plug is the corresponding male header from the same Molex NSCC 98819 series. The latch holder on this receptacle engages the mating half's locking feature for a positive-retention connection.
