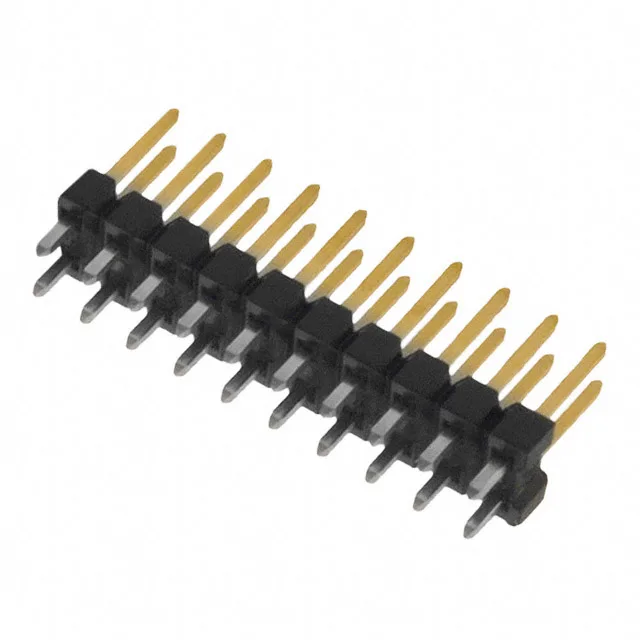

10-89-1201 — Molex product photo
Molex

Molex 10-89-1201 C-Grid 8624 Header – 20 Pos, 2.54mm Pitch

MPN10-89-1201
Obsolete

Molex C-Grid 8624 series, 10-89-1201, 20-position dual-row unshrouded breakaway header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, UL94 V-0 black polyester housing.

$0.4900Ref. price · indicative, final on quote
10-89-1201 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10-89-1201 Technical Specifications
ParameterValue
SeriesC-Grid 8624
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.107\" (2.71mm)
Overall contact length0.437\" (11.10mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

20-Position Breakaway Header – 2.54mm Pitch, Gold Contacts

The mating contacts are gold-plated at 15.0µinch (0.38µm) over phosphor bronze, while the solder tails receive a thicker 74.8µinch (1.90µm) tin finish.

Obsolete – Sourced per RFQ, No Direct Successor

Molex has marked the 10-89-1201 as Obsolete. For a BOM that requires an active alternative, the closest functional match within the C-Grid 8624 family would be a similar 20-position, 2.54mm-pitch unshrouded header — but the exact plating, contact length, and insulation height may differ. A board-spin or a revised mating half may be needed.

The 0.090" (2.29mm) insulation height leaves clearance for component placement under the header body.

Frequently asked questions

Is the Molex 10-89-1201 obsolete, and what is the replacement?

No direct pin-compatible replacement has been announced. For a BOM requiring an active part, a functionally similar 20-position, 2.54mm-pitch unshrouded header from the C-Grid 8624 series may fit, but the exact contact finish and dimensions should be verified against the board layout.

Where can I buy the 10-89-1201 and get a price?

The 10-89-1201 is sourced through independent distribution against an RFQ. Submit an RFQ for your target quantity and lead-time requirement.

What is the difference between 10-89-1201 and 10-89-1202?

The 10-89-1201 is a 20-position header; the 10-89-1202 is a 24-position header in the same C-Grid 8624 series. Both share the 2.54mm pitch, dual-row layout, and gold-plated mating contacts. The position count is the only difference — the board footprint scales accordingly.
